Parts list + Fotos

  Superkart EUR Foto
KART COMPLETE
-
S-000 Kart SUPERKART - cplt with engine VM 250 (without tyres)
-
-
-
KART CHASSIS
-
S-001 Kart chassis SUPERKART - with radiator
-
-
S-001A Kart chassis SUPERKART - without radiator
-
-
-
FRAME
-
S-100 Frame - for VM
-
-
S-100A Frame - for SW
-
-
S-100B Frame - for Yamaha
-
-
S-101 Frame - for other engines
-
-
S-102Aa Seat mount
-
-
S-102Ab Seat mount
-
-
S-102B Seat mount - front - left (to frame)
-
-
S-102Ba Seat mount - front - right (to frame)
-
-
S-102C Holder rubber block
-
-
S-102D Seat mount split pin
-
-
S-103 Seat holder pin high 3mm
-
-
S-103A Seat holder pin -high 10mm
-
-
S- 103B Seat holder pin - high 15mm
-
-
S-104 Rear bumper CIK 010
-
-
S-104A Rear bumper - model 09
-
-
S-105 Front bumper CIK 010
-
-
S-105A Front bumper - with adjustable height
-
-
S-106 Front bumper wedge washer - plastic
-
-
S-107Ai Front bumper plastic bush
-
-
S-107Aj Front bumper plastic pin
-
-
401H Front bumper stop ring AL
-
-
S-107Ak Adjusting holder of the front spoiler
-
-
S-107Al AL strip holder of the front spoiler
-
-
S-107M Reinforcement of the front spoiler - left
-
-
S-107Ma Reinforcement of the front spoiler - right
-
-
S-107 Side bumper CIK 010 - left
-
-
S-107A Side bumper CIK 010 - right
-
-
S-107B Rear side bumper holder
-
-
S-107Ba Front side bumper holder
-
-
S-109A Throttle pedal
-
-
S-109B Brake pedal
-
-
109Db Pedal distance tube
-
-
109F Pedal restoring spring
-
-
S-118Aa Nassau panel bracket - upper - left
-
-
S-118Ab Nassau panel bracket - upper - right
-
-
S-118B Nassau panel bracket - front - upper piece
-
-
S-118Bb Nassau panel bracket - front - upper piece - AL
-
-
S-118Ba Nassau panel bracket - front - lower piece
-
-
S-118C Front spoiler brackets - side rear
-
-
S-118E Floor tray holder - side
-
-
S-118Ea Floor mount plastic bush
-
-
S-120 Gear shift lever complete - universal
-
-
S-120A Gear shift lever complete - for VM
-
-
S-120B Gear shift engine lever for VM
-
-
S-120C Gear shifting rod for VM with joints
-
-
S-122A Floor tray - big - Carbon
-
-
S-122Aa Floor tray - big - fiberglass
-
-
S-122B Floor tray - small - Carbon
-
-
S-122Ba Floor tray - small - fiberglass
-
-
S-122D Washer floor tray screw - Al
-
-
S-122E Floor tray screw
-
-
S-122F Nut Al - M5
-
-
S-122G Nut Al - M6
-
-
123 Seat screw M8x25
-
-
124A Washer seat screw
-
-
125 Seat washer - plastic D 34x10mm
-
-
125A Seat washer - plastic D 34x5mm
-
-
S-129 Throttle cables holder
-
-
129Da Cable clip hexagonal R.R.
-
-
-
FRONT AXLE
-

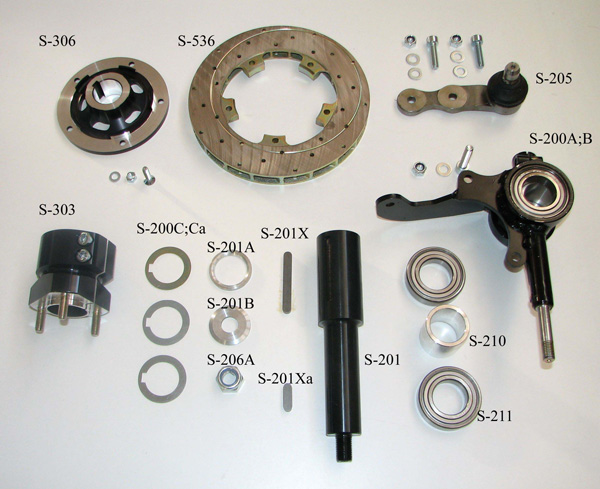

S-200A Stub axle - left
-
-
S-200B Stub axle - right
-
-
S-200Aa Stub axle - left (for K KART)
-
-
S-200Ba Stub axle - right (for K KART)
-
-
S-200Cd Insert under the front brake disc carrier - 2 mm
-
-
S-200Cc Insert under the front brake disc carrier - 1 mm
-
-
S-200C Distance ring for brake disc hub - 0,5 mm
-
-
S-200Ca Distance ring for brake disc hub - 0,3 mm
-
-
S-200Cb AL distance ring of the brake disc carrier - 30x1 mm
-
-
S-201 Stub axle beam tube
-
-
S-201A Distance ring 30x4 mm - AL
-
-
S-206A Nut for stub axle beam tube M14x1,5 mm
-
-
S-201B Beam tube washer
-
-
S-201Xa Beam tube key way 8x5x25
-
-
S-202 Front brake disc carrier Al - left
-
-
S-202A Front brake disc carrier Al - right
-
-
S-202B Front brake disc carrier Mg - left
-
-
S-202C Front brake disc carrier Mg - right
-
-
S-205 Stub axle ball pivot
-
-
S-205A Distance ring for lower stub axle ball pivot
-
-
S-205B Stub axle ball head - M14x1,5mm
-
-
S-205Bb Nut for stub axle ball head - M14x1,5mm
-
-
S-205Bc Washer under the stub axle ball head - D 12x2,5 mm
-
-
S-205Ba Stub axle pin - lower
-
-
S-205Bd Stub axle screw M 8x40 mm
-
-
S-205Be Selflocking nut M12 of the stub axle pin
-
-
S-210 Stub axle bearings spacer
-
-
210A Spacer 10x3 mm
-
-
S-211 Stub axle bearing (6006 2ZR)
-
-
-
REAR AXLE
-
S-300Aa Rear axle 40/3 for VM
-
-
S-300Ab Rear axle 40/4 for VM
-
-
S-300Ba Rear axle 40/3 universal
-
-
S-300Bb Rear axle 40/4 universal
-
-
S-300C Rear axle 40/3 SUPER V-KART
-
-
301C Rear axle bearing 40/80
-
-
302D Rear axle bearing holder
-
-
S-303 Rear hub D 40 / L-67 mm - AL
-
-
S-303A Rear hub D 40 / L-50 mm - AL
-
-
S-303B Rear hub D 40/ L 67 - Mg
-
-
S-303C Rear hub D 40/ L 50 - Mg
-
-
304 Rear hub bolt M 8
-
-
304F Nut for rear hub bolt M8
-
-
S-305 Rear brake disc carrier - AL
-
-
S-305A Rear brake disc carrier - Mg
-
-
S-310 Washer D 8x3 mm
-
-
S-310A ALU block D 8x15 mm
-
-
313B Rear axle key way M 8x5x50 mm
-
-
313F Rear axle key way M 8x5x80 mm
-
-
S-314 Sprocket distance ring - AL
-
-
-
STEERING
-
400B Steering wheel - leather - R.R.
-
-
400Ca Steering wheel - CKR
-
-
S-400Cb AIM holder for steering wheel
-
-
S-402Cb Distance block for steering wheel CKR
-
-

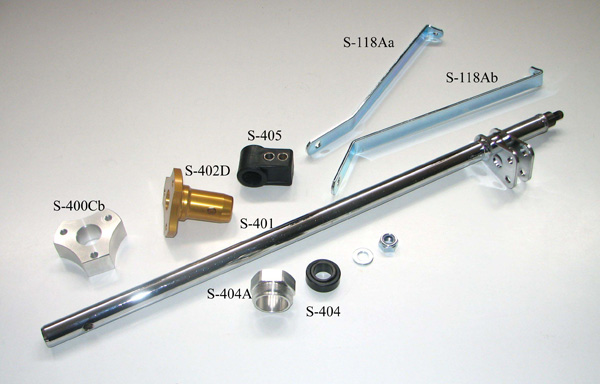

S-401 Steering column
-
-
S-401C Steering column spacer D8x17mm
-
-
402C Steering wheel boss -straight
-
-
402D Steering wheel boss -obligue
-
-
402E Steering wheel boss
-
-
S-404 Ball bearing for steering column
-
-
S-404A Steering column bearing nut
-
-
405A Steering column sleeve - plastic
-
-
S-407A Track rod - left - naked
-
-
S-407Aa Track rod - right - naked
-
-
408 Track rod joint M8 - right
-
-
408A Track rod joint M8 - left
-
-
S-408H Stub axle pitman - inner - complete
-
-
S-408Aa Stub axle pitman - inner - bare
-
-
S-408Ab Stub axle pitman - rear - bare
-
-
408D Pitman joint M10 - left
-
-
408E Pitman joint M10 - right
-
-
409 Track rod joint nut M8 - right
-
-
S-409A Track rod joint nut M8 - left
-
-
S-409J Pitman nut (left-right)
-
-
S-409Ja Pitman nut (left-right)
-
-
S-409B Pitman nut M12x1,5 mm
-
-
409B Nut M10 - right
-
-
S-409C Nut M10 - left
-
-
-
BRAKES
-
500Ed Master cylinder - complete MS KART
-
-
501C Master cylinder piston - D 23,8 mm - MS KART
-
-
502B Master cylinder press.collar - D 23,8mm - MS KART
-
-
502C Master cylinder seal - D 23,8mm - MS KART
-
-
KB3000 Master cylinder - complete K KART
-
-
KB3100 Master cylinder pistom K KART
-
-
KB3108 Master cylinder seal K KART
-
-
S-503 Master cylinder distance ring K KART
-
-
506 Coupling lever screw
-
-
507 Fork pin D 5x15 mm
-
-
S-508 Fork pin safety ring
-
-
S-512 Brake dispatcher K KART
-
-
S-512A Brake dispatcher remote control
-
-
S-512B Brake dispatcher MS KART
-
-
S-512C Holder for brake dispatcher remote control
-
-
S-513 Brake pull rod - complete
-
-
S-515 Rear brake caliper
-
-
KB1000 Rear brake caliper K KART
-
-
S-515A Rear brake caliper insert
-
-
S-515B Holder for rear brake caliper
-
-
S-515C Holder for rear brake caliper K KART
-
-
S-516A Front brake caliper - left
-
-
S-516B Front brake caliper - right
-
-
517A Front brake caliper piston - selfadjusting D 31,5mm-MS KART
-
-
517B Rear brake caliper piston - selfadjusting D 31,5mm-MS KART
-
-
519 Brake caliper seal - 31,5 mm - MS KART
-
-
520 Brake caliper cowling - 31,5 mm - MS KART
-
-
S-521A Safety pin of rear brake caliper - complete
-
-
S-521Aa Safety pin of front brake caliper - complete
-
-
521Ab Seeger ring of safety pin of front and rear brake caliper
-
-
523 Rear brake pad Ferodo - MS KART
-
-
524 Front brake pad Ferodo - MS KART
-
-
523C Rear brake pad SUPER RACING- MS KART
-
-
524B Front brake pad SUPER RACING- MS KART
-
-
S-KB1000L Front brake caliper - left - K KART
-
-
S-KB1000P Front brake caliper - right - K KART
-
-
KB1302 Bolt M4 x 70
-
-
KB1307 Nut M4
-
-
KB1100 Brake body
-
-
KB1102 Brake piston o-ring
-
-
KB 1101 Brake rubber
-
-
KB1200 Rear brake pad S214 - K KART
-
-
KB1201 Rear brake pad S222 - K KART
-
-
KB1202 Rear brake pad S273 - K KART
-
-
S-KB1200P Front brake pad S214 K KART
-
-
S-KB1201P Front brake pad S222 - KZ - K KART
-
-
S-KB1202P Front brake pad S273 - KZ - K KART
-
-
525C Front brake pad screw - selfadjusting
-
-
525B Rear brake pad screw - selfadjusting
-
-
526B Rear brake pad restoring spring - selfadjusting
-
-
526C Front brake pad restoring spring - selfadjusting
-
-
529B Rear brake pad insert MS KART 0,3mm
-
-
529Ba Rear brake pad insert MS KART 0,5mm
-
-
529C Front brake pad insert MS KART 0,3mm
-
-
529Ca Front brake pad insert MS KART 0,5mm
-
-
S-534 Rear brake disc
-
-
S-536 Front brake disc - left or right
-
-
S-540 Brake pull rod safety cable
-
-
S-540A Double fork for brake pull rod safety cable
-
-
S-K552 Braided brake hose - 370 mm
-
-
545 Braided brake hose connector - straight piece
-
-
546 Braided brake hose connector - L piece
-
-
S-547 Braided brake hose connector - T piece
-
-
S-561 Braided brake hose - front - 70 mm
-
-
550Ac Braided brake hose - front - 520 mm
-
-
S-560 Braided brake hose - rear - 1360 mm
-
-
-
WHEEL RIMS
-

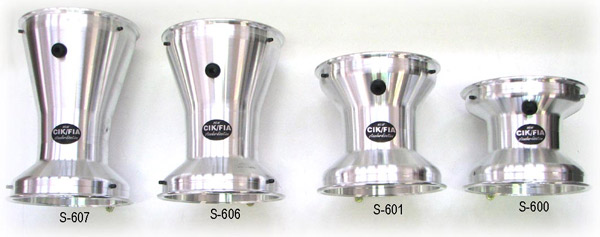

S-600 Front wheel rim - 120 mm
-
-
S-601 Front wheel rim - 150 mm
-
-
S-602 Front wheel rim - 130 mm
-
-
S-606 Rear wheel rim - 200 mm
-
-
S-607 Rear wheel rim - 230 mm
-
-
S-608 Rear wheel rim - 213 mm
-
-
-
PLASTIC PARTS
-
S-700A Side pod - left - fiberglass (model B)
-
-
S-700Aa Side pod - left - Carbon (model B)
-
-
S-700Ab Side pod - left - fiberglass (model A)
-
-
S-700Ac Side pod - left - fiberglass (model C)
-
-
S-700Ad Side pod - left - Carbon (model C)
-
-

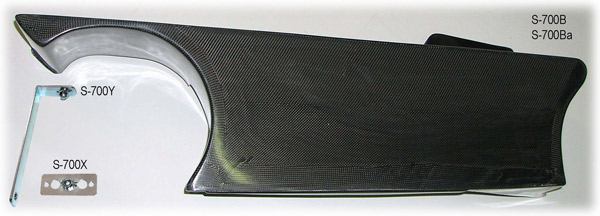

S-700B Side pod - right - fiberglass (model B)
-
-
S-700Ba Side pod - right - carbon (model B)
-
-
S-700Bb Side pod - right - fiberglass (model A)
-
-
S-700Bc Side pod - right - fiberglass (model C)
-
-
S-700Bd Side pod - right - carbon (model C)
-
-
S-700J Air drift to radiator - fiberglas
-
-
S-700Ja Air drift to radiator - carbon
-
-
S-700C Rear wing - upper part - fiberglass (model A)
-
-
S-700Ca Rear wing - upper part - Carbon (model A)
-
-
S-700Cb Rear wing - upper part - fiberglass (model B)
-
-
S-700Cd Rear wing - upper part - Carbon (model B)
-
-
S-700D Rear wing - outher side - fiberglass (model A)
-
-
S-700Da Rear wing - outher side - Carbon (model A)
-
-
S-700Db Rear wing - outher side - fiberglass (model B)
-
-
S-700Dc Rear wing - outher side - Carbon (model B)
-
-
S-700E Rear wing - inner side - fiberglass (model A)
-
-
S-700Ea Rear wing - inner side - Carbon (model A)
-
-
S-700Eb Rear wing - inner side - fiberglass (model B)
-
-
S-700Ec Rear wing - inner side - Carbon (model B)
-
-
S-700F Rear wing - bottom part - fiberglass (model A)
-
-
S-700Fa Rear wing - bottom part - Carbon (model A)
-
-
S-700Fb Rear wing - bottom part - fiberglass (model B)
-
-
S-700Fc Rear wing - bottom part - Carbon (model B)
-
-
S-700G Rear wing - complete (with holders) - fiberglass
-
-
S-700Ga Rear wing - complete (with holders) - Carbon
-
-
S-700Xa Rear wing holders ALU - set
-
-

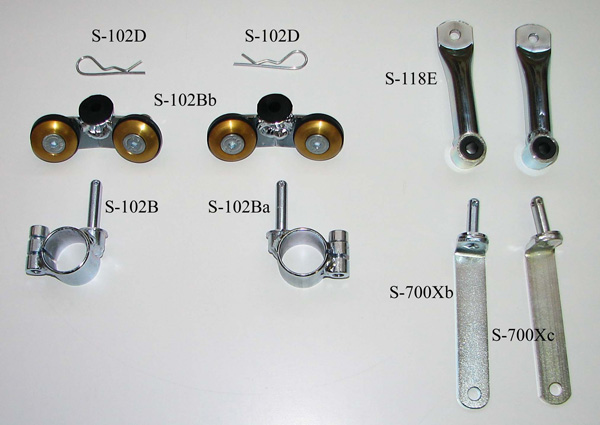

S-700Xb Rear wing holder - left
-
-
S-700Xc Rear wing holder - right
-
-
S-700Xd Rear wing holder - low - complete
-
-
S-700Y Side pod holder - rear - upper
-
-
S-700X Side pod nut M6 with holder
-
-
S-701A Front spoiler - fiberglass (model A)
-
-
S-701Aa Front spoiler - Carbon (model A)
-
-
S-701Ab Front spoiler - fiberglass (model B)
-
-
S-701Ac Front spoiler - Carbon (model B)
-
-
S-701Y Front spoiler anti-wear off plate
-
-
S-702A Nassau panel - fiberglass (model A)
-
-
S-702Aa Nassau panel - Carbon (model A)
-
-
S-702Ab Nassau panel - fiberglass (model B)
-
-
S-702Ac Nassau panel - Carbon (model B)
-
-
S-702Ba Nassau panel bracket - upper - Carbon
-
-
S-703 Side wall of the right panel - inner - fiberglas
-
-
S-703A Side wall of the right panel - inner - carbon
-
-
S-705A Seat - fiberglass (model A)
-
-
S-705Aa Seat - Carbon (model A)
-
-
S-705Ab Seat - fiberglass (model B)
-
-
S-705Ac Seat - Carbon (model B)
-
-
S-705Ad Seat - fiberglass (model C) - size L
-
-
S-705Ae Seat - fiberglass (model C) - size XL
-
-
S-705Af Seat - Carbon (model C) - size L
-
-
S-705Ag Seat - Carbon (model C) - size XL
-
-
S-705B Seat head rest
-
-
S-705Ba Head rest prop - for narrow wing
-
-
717 Rubber washer D6
-
-
718 Rubber washer D8
-
-
720B Fuel hose D 6mm
-
-
725A Overflow tank - KG - set
-
-
726 Fuel presure monometer
-
-
S-725B Overflow tank holder - for engine VM
-
-
-
ACCESSORIES
-
S-800 Clutch pump
-
-
S-800A Clutch pump body
-
-
S-800B Coupling lever
-
-
KB4100 Clutch pump piston K KART
-
-
KB4107 Clutch pump pressure collar K KART
-
-
KB4108 Clutch pump seal K KART
-
-
S-800C Clutch pump restoring spring
-
-
511Ca Clutch pump cover
-
-
511Ba Clutch pump bellows
-
-
S-800F Clutch hose
-
-
S-800G Connector M10x1
-
-
S-800Ga Gasket Al - D 10
-
-
S-801 Radiator - side 08
-
-
S-801A Rear radiator
-
-
S-801Ae Aluminium tube to radiator - rear
-
-
S-801Aa Aluminium tube to radiator - front
-
-
S-801Ab Aluminium tube to cylinders
-
-
S-801Ac Water connecting tubes - for engine VM 250
-
-
S-801Ad Blowcock for engine water
-
-
800Ha Water pour plug
-
-
S-801Ba Rubber hose with knee - D 25 mm
-
-
S-801Bb Rubber hose - D 20 mm - to cylinders
-
-
S-801Ca Support for radiator
-
-
S-801Cb Radiator holder pin
-
-
S-801Cc Rear support for radiator
-
-
S-801Cd Safety pin
-
-
S-801D Water hose clip D 16-25
-
-
S-801Da Water hose clip D 20-32
-
-
S-801E Water hose socket for VM engine
-
-
S-801F
-
-
S-801Fa
-
-
S-801Fb
-
-
S-802 Chain DID - 74 pieces
-
-
S-802A Chain connecting link type 428 DID
-
-
S-802X Device for assembly of 428 O-ring chains
-
-
S-803 Sprocket for rear axle D 40 mm (25 -32 teeth)
-
-
S-804 Sprocket for engine VM (23 - 28 teeth)
-
-
S-806 Engine mount VM
-
-
S-806A Engine mount rubber block
-
-
S-806B Front engine mount VM - lower
-
-
S-806Ba Front engine mount VM - upper
-
-
S-806Db Silentblock spacer front
-
-
S-806C Rear engine mount VM - lower
-
-
S-806Ca Rear engine mount VM - upper
-
-
S-806Cd Engine mount screw rear M10x190mm - upper
-
-
S-806Cc Engine mount screw rear M10x165mm - upper
-
-
S-806Cb Silentblock spacer rear - L 74 mm
-
-
S-806D Engine mount screw front M10x270mm - lower
-
-
S-806Da Engine mount screw front M12x270mm- upper
-
-
S-806Dc Tightening screw spacer L-82mm
-
-
S-806E Screw M8x25mm
-
-
S-806F Engine mount washer rear, upper
-
-
S-807 Engine tightening screw
-
-
S-807A Engine tightening screw holder
-
-
S-807B Bearing housing of the engine tightening screw (incl. bearing)
-
-
S-807Ba Bearing housing of the engine tightening screw
-
-
S-807Bb Bearing of the engine tightening screw
-
-
S-807Bc Retaining ring for bearing of the engine tightening screw
-
-
S-807Bd Stud for the bearing housing of the engine tightening screw
-
-
S-807Be Nut for bearing housing stud - left to right
-
-

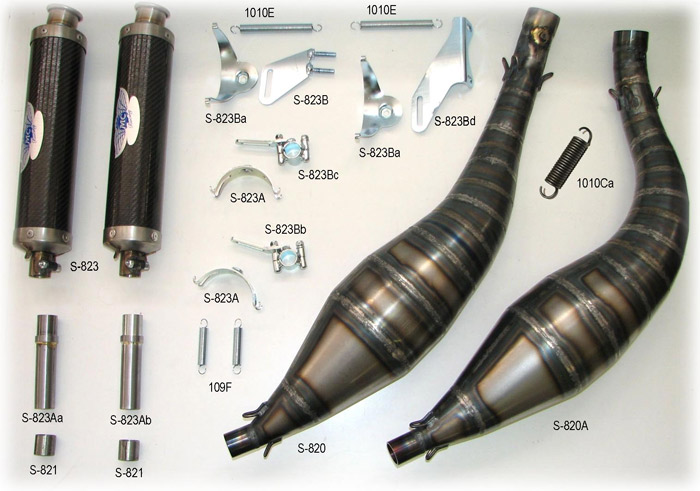

S-820 Exhaust for VM engine - left
-
-
S-820A Exhaust for VM engine - right
-
-
S-821 VM exhaust bushing
-
-
S-823 Exhaust silencer PEGASO
-
-
S-823Aa Exhaust end VM - left
-
-
S-823Ab Exhaust end VM - right
-
-
S-823A Exhaust silencer clamp - small
-
-
S-823B Exhausts holder - for VM - left
-
-
S-823Bd Exhausts holder - for VM - right
-
-
S-823Ba Exhausts holder clamp
-
-
S-823Bb Exhaust silencer holder - right
-
-
S-823Bc Exhaust silencer holder - left
-
-
1010E Exhaust spring - L-130 mm
-
-
109F Exhaust silencer spring - L-70 mm
-
-
1010Ca Exhaust spring - cylinder side - L-70 mm
-
-
827 Oil ELF HTX 909 - fuel oil
-
-
828 Oil ELF HTX 976 - fuel oil
-
-
S-829G Oil CASTROL MTX SAE 75W-140
-
-
X20115 Oil XERAMIC EVOLUTION CASTOR 2T
-
-
829Aa Oil Q8 - gearbox oil
-
-
X20108 Chain spray XERAMIC synthetic, 500 ml
-
-
831A Brake Fluid ATE (1 litr)
-
-
X20474 Brake Fluid XERAMIC DOT4 (250 ml)
-
-
S-833 Fuel tank AL - 17 litres
-
-
S-833A Tank rubber block cplt.
-
-
S-833B Tank suction tube
-
-
S-833C Tank cup
-
-
S-833D Tank cup seal
-
-
834A Fuel pump MIKUNI - double
-
-
S-834B Fuel pump electric HARDI
-
-
S-834C Fuel pump electric FACET
-
-
S-834D Fuel pressure regulator
-
-
S-834Da Fuel pressure regulator holder
-
-
S-834E Fuel pressure monometer
-
-
724A Petrol filtr straight
-
-
S-834Fa Petrol filtr 90o
-
-
S-835A Kart cover
-
-

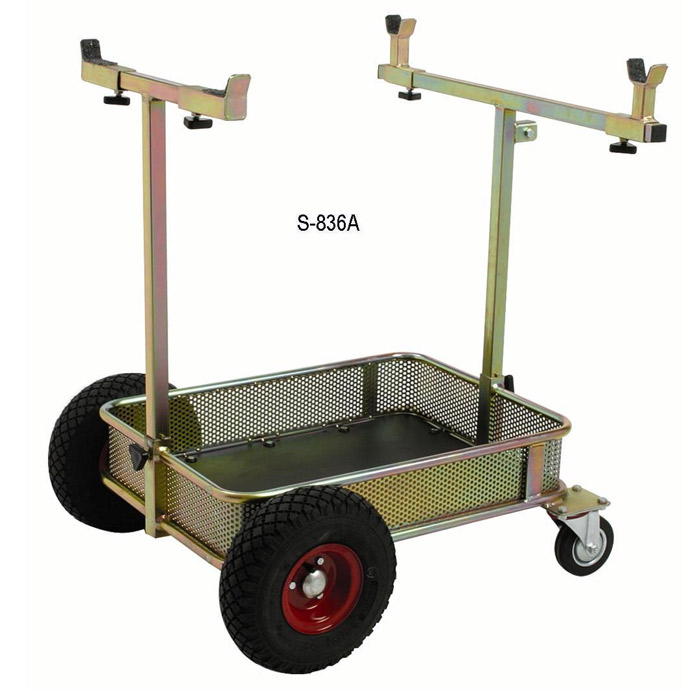

S-836A Kart transporter SUPERKART
-
-
S-836B Kart transporter Special
-
-
S-869Bd Tyre dismounting device - mechanical with lever - 6"
-
-
855 Adhesive tape - black
-
-
S-874 Starting mechanism (for engine VM)
-
-
S-880 Intake filter Green
-
-
S-880A Intake filter holder
-
-
S-880Aa Intake filter holder - lower
-
-
S-880B Green intake filter insert - plastic
-
-

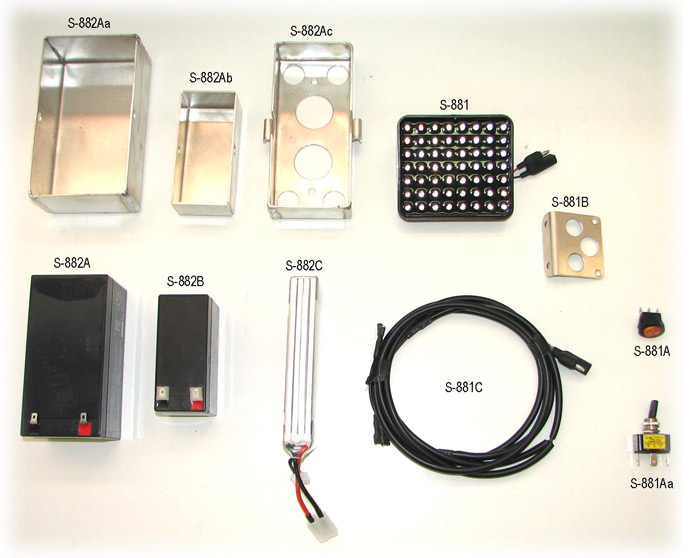

S-881 Rear light - registered FIA
-
-
S-881A Rear light switch
-
-
S-881Aa Rear light switch
-
-
S-881B Rear light holder
-
-
S-881C Rear light cable harness
-
-
S-882A Battery 3.3 AH
-
-
S-882B Battery 1.3 AH
-
-
S-882Aa Battery holder 3.3 AH
-
-
S-882Ab Battery holder 1.3 AH
-
-
S-882Ac Battery holder NIMH
-
-
S-890 Tool for castor measurement
-
-
-

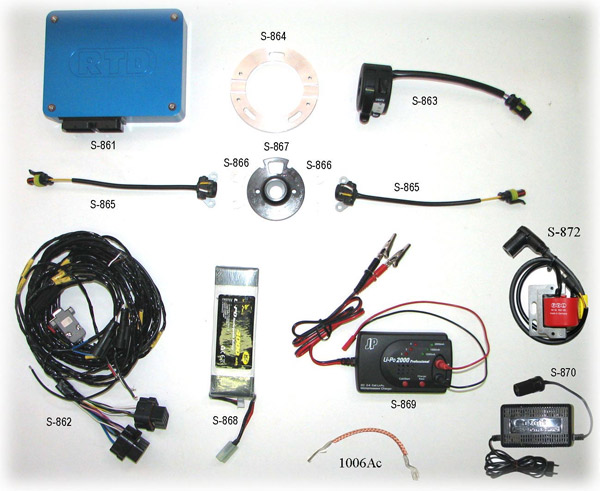

IGNITION RTD
-
S-860 Ignition system RTD - cplt. for VM engine
-
-
S-861 Ignition CDI
-
-
S-862 Wiring harness
-
-
S-863 Map switch - 4 positions
-
-
S-864 Stator desk
-
-
S-865 Sensor (1 pieces)
-
-
S-866 Graduaded scale for advance set up
-
-
S-867 Rotor
-
-
S-868 Battery LIPOL
-
-
S-868A Battery PANASONIC NIMH 12 V / 10 AH
-
-
S-869 Battery charger LIPOL
-
-
S-869A Battery charger - universal
-
-
S-870 Battery charger rectifier
-
-
S-871 CDI software with cable
-
-
S-872 Ignition coil PVL
-
-
S-872A PVL Ignition coil aluminium washer
-
-
1006Ac Ignition coil grounding cable
-
-
-
SPECIAL PARTS
-
922D Set of 6" tyres DUNLOP DES CIK 12 - slick
-
-
922E Set of 6" tyres DUNLOP KT6 W11 CIK 12 - wet
-
-
1006Ca Spark plug NGK R7282A - 105
-
-
R297835 Spark plug DENSO IW 31
-
-
R297834 Spark plug DENSO IW 34
-
-
1006Cb Spark plug cap NGK R7282A - 105
-
-
51004 Clamp for carbureter flange TM D40/60
-
-
R251850 Clamp for carbureter flange ROTAX D40/60
-
-
MTV301A Reed valce V Force 3 complete
-
-
MTAG602C Reed valve insert V Force 3 - plastic
-
-
MT3P602H Set of reeds for V FORCE 3 reed valve
-
-
13005.1 Carbureter flange - rubber - for 2 screws M8
-
-
13059 Carbureter flange for reed valve (TM)
-
-
S-MT001 AL reeds flange for V FORCE 3 - oblique
-
-
S-MT002 AL reeds flange for V FORCE 3 - straight, short
-
-
S-TM001 AL reeds flange for TM
-
-
26116 Fixing plate of the rubber carbureter flange
-
-
49772 Screw M8x12 of the fixing plate of the rubber carbureter flange
-
-
20062.2 Reed petal - TM - MAGMALYTE
-
-
20049 Carbon reed stopper - TM
-
-
20082 Reed valve TM - complete
-
-
05265 Reed valve gasket TM
-
-
05272 Reed flange gasket TM
-
-
R260721 Power valve membrane - black
-
-
R260723 Power valve membrane - green
-
-
R253250 Power valve piston - plastic, yellow
-
-
R854470 Power valve piston - plastic, black
-
-
R239940 Power valve spring DM 13,2/D 0,8/L 48,5 - yellow - soft
-
-
R239941 Power valve spring DM 13,2/D 0,8/L 52,5 - blue - standard
-
-
R239942 Power valve spring DM 13,2/D 0,8/L 42,5 - black - super soft
-
-
R239944 Power valve spring DM 13,2/D 0,8/L 48,5 - hard
-
-
24010 Carburetter DELL ORTO VHSB 39 ND
-
-
24011 Carburetter DELL ORTO VHSC 39 BD
-
-
C8649 Needle valve DELL ORTO
-
-
C8530 Needle DELL ORTO
-
-
C12542 Tube DQ DELL ORTO
-
-
C12539 Tube DP DELL ORTO
-
-
C13086 Jet DELL ORTO
-
-
C6413 Main jet DELL ORTO
-
-
C1486 Idle jet DELL ORTO
-
-
VM00002A Gearbox roller bearing NJ305 ECP/C3 - driven shaft
-
-
VM00367A Gearbox roller bearing U205 ECP/C3 - drive shaft
-
-
VM00005 Bearing ZVL 6001 2RSR
-
-
VM00373 Bearing SKF 6004 TN9/C3
-
-
VM00364 Bearing SKF 6005 TN9/C3
-
-
VM00004 Bearing SKF 6202 TN9/C3
-
-
VM00368 Bearing SKF 6203 TN9/C3
-
-
VM00392 Oil seal CR 32x47x7 HMSA10V
-
-
S-407B Track rod - L - complete
-
-
S-407Ba Track rod - P - complete
-
-

© 2010 - 2012 MS KART
