Parts list + Fotos

  X-B. Carburetter EUR Foto
24034 Carburetter VHSH 30 CS
-
-
C16565 Rotation valve VHSH 30 CS
-
-
C9475 Rotation valve PHBG 18
-
-
C52611 Gasket - set
-
-
C52526 Gasket - set PHBN
-
-
C8649 Needle valve (150; 250; 300; 350)
-
-
C2838 Needle valve for PHBG 18
-
-
C8530 Needle "K" (K21; K22; K23; K27; K28; K98)
-
-
C9713 Needle "U"
-
-
C9595 Needle "W" for PHBG 18
-
-
C9477 Needle "X" for PHBG 18
-
-
C10825 Needle washer
-
-
C9596 Needle circlip
-
-
C12542 Tube DQ (DQ262; DQ263; DQ264; DQ265; DQ266 … DQ272)
-
-
C12539 Tube DP (DP262; DP263; DP264; DP265; DP266 … DP272)
-
-
C9511 Tube AN
-
-

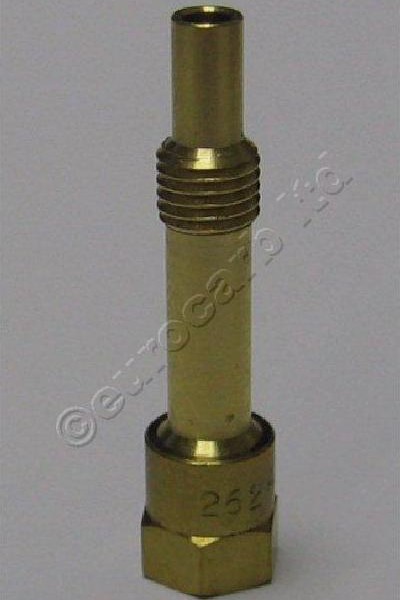

C9654 Tube AU
-
-
C9562 Carburetor tube reduction AN
-
-
C9655 Carburetor tube reduction AU
-
-
C13086 Jet (30; 40; 45; 50; 55; 60)
-
-

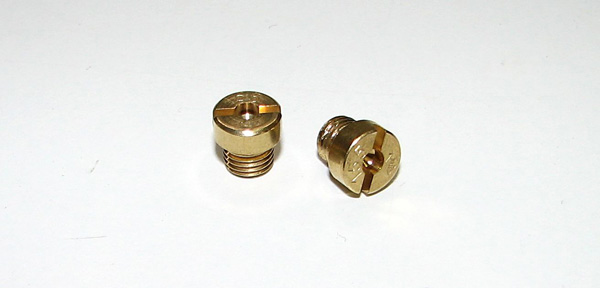

C6413 Main jet (130; 132; 135; 138; 140; 142; 145; 148; 150; 152; 155; 158; 160; 162; 165; 168; 170; 172; 175; 178; 180; 182; 185; 188; 190; 192; 195; 198; 200; 205; 210; 215; 220 … po pěti až do 280)
-
-
C12995 Idle jet (30; 40; 45; 50; 55; 60; 65; 70)
-
-
C1486 Jet for PHBG 18
-
-
C1488 Idle jet for PHBG 18
-
-
C9779 Main jet washer PHBG 18
-
-
C14415 Float chamber
-
-
C14419 Float chamber plug
-
-
C10853 Float chamber plug seal
-
-
C12693 Float chamber cover seal
-
-
C16481 Carburetor insert 8,5
-
-
C12789 Carburetor insert bush 8,5 - plastic
-
-
C12544 Carburetor insert screw
-
-
C13087 Carburetor insert seal
-
-
C01481 Carburetor control screw
-
-
C01692 Nut for carburetor control screw
-
-
C01476 Rubber cover for carburetor control screw
-
-
C9597 Carburetor spring PHBG 18
-
-
C14958 Carburetor spring cap PHBG 18
-
-
C9482 Carburetor cover PHBG 18
-
-
C9514 Carburetor cover seal PHBG 18
-
-
C9588 Carburetor cover screw PHBG 18
-
-
C9450 Carburetor float PHBG 18
-
-
C9506 Carburetor float pin PHBG 18
-
-
C9497 Float chamber seal PHBG 18
-
-
51004 Carburetter clip 40/60 - TM
-
-
02523 Carburetter PHBG 18 BS
-
-
03139 Carburetter PHBN 14 MS
-
-
C15362 Rotation valve PHBN 14
-
-
C11023 Membranes for fuel pump P 34 PB 2 – Dell Orto
-
-
