CIK-FIA 35/CH/14

The MS KART RZF29 chassis has international homologation CIK/FIA valid for all cathegories until 2014. The homologation number is 35/CH/14.

The RZF29 model of MS KART chassis is available in following configurations:

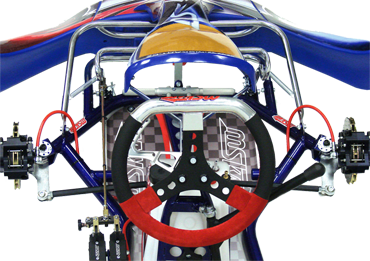

• RZF 29 / KZ with front brakes (ref. 001B)

• RZF 29 / KF without front brakes (ref. 002C)

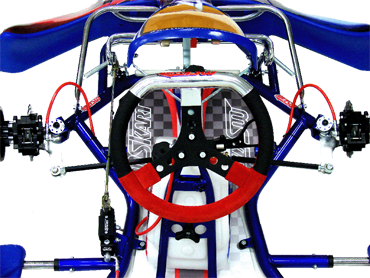

• RZF 29 / KF with front brakes operated by hand (ref. 003)

• RZF 29 / KZ – 4T with front brakes, made for left hand drive (ref. 001Ba)

• RZF 29 / KF – 4T without front brakes, made for left hand drive (ref. 002Ca)

• RZF 29 / DD2 (ref. 001Bb)

We supply the MS KART RZF 29 chassis also as complete karts with following engines:

• Kart MS KART RZF 29 / KZ with TM KZ10 engine (ref. 030Ch)

• Kart MS KART RZF 29 / KZ with VM 125 M02/B engine (ref. 030Ci)

• Kart MS KART RZF 29 / KZ with Rotax MAX DD2 engine (ref. 030Cj)

• Kart MS KART RZF 29 / KF2 with Rotax MAX engine (ref. 030Cn)

• Kart MS KART RZF 29 / KF with Rotax MAX engine (ref. 030Co)

• Kart MS KART RZF 29 / KF with Rotax Junior MAX engine (ref. 030Cp)

• Kart MS KART RZF 29 / KF - 4T with HONDA GX390 engine (ref. 043B)

Chassis technical data:

Frame Cr-Mo4     Ø 32 mm

Wheel base         1050 mm

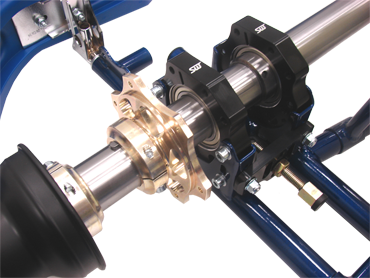

Rear axle            Ø 50 mm

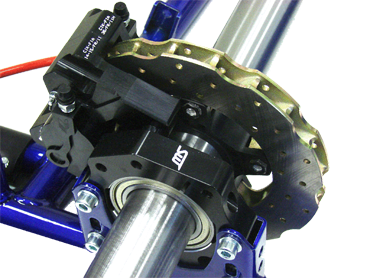

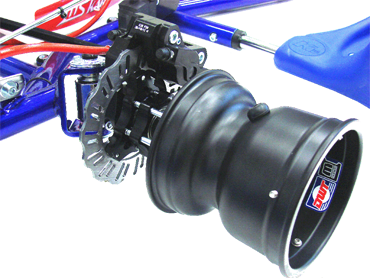

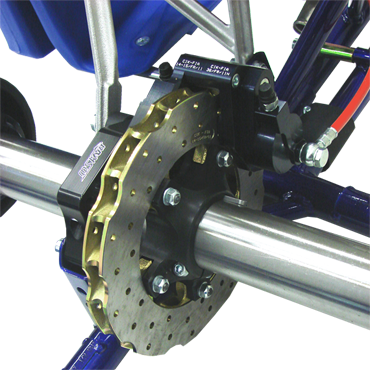

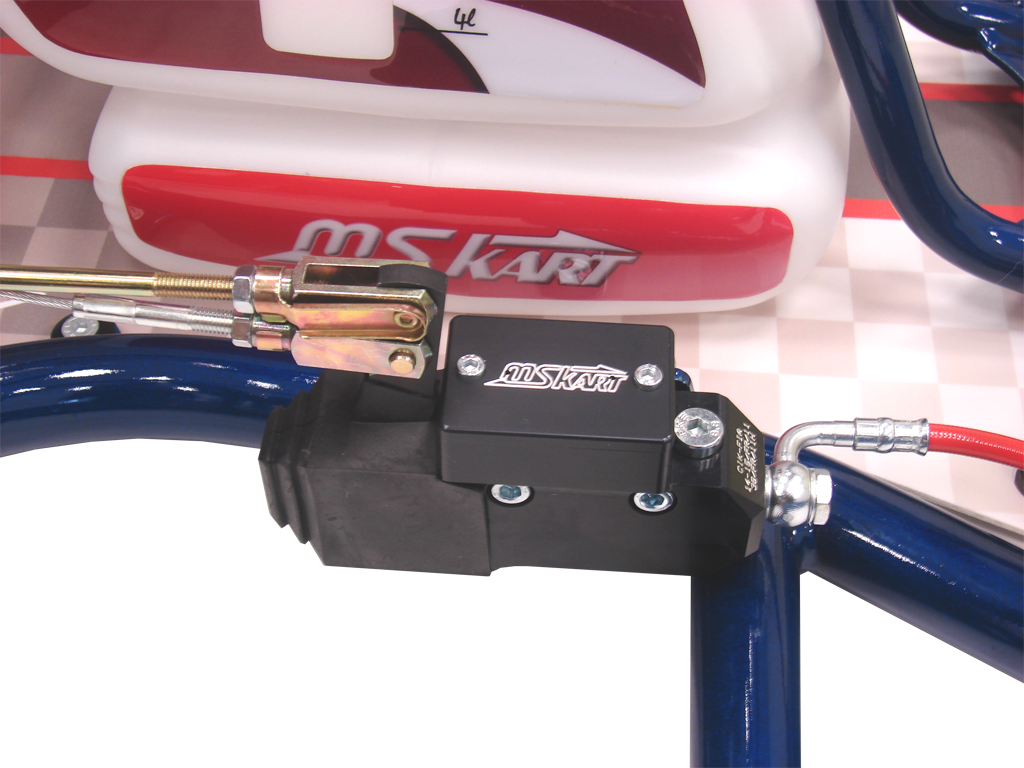

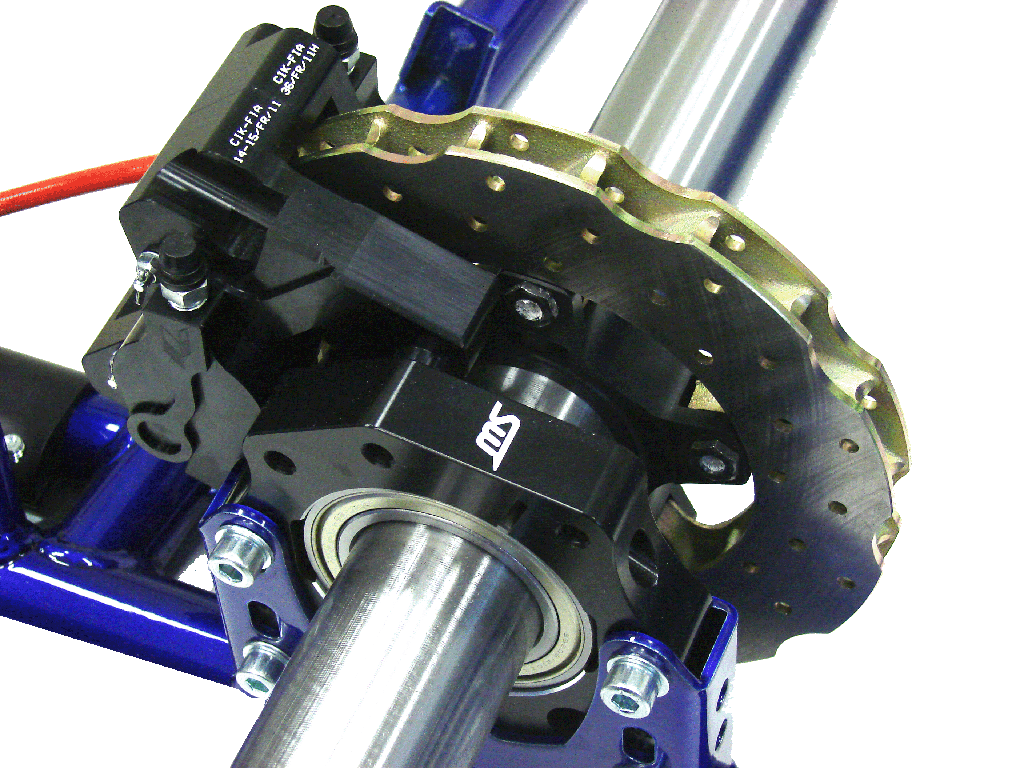

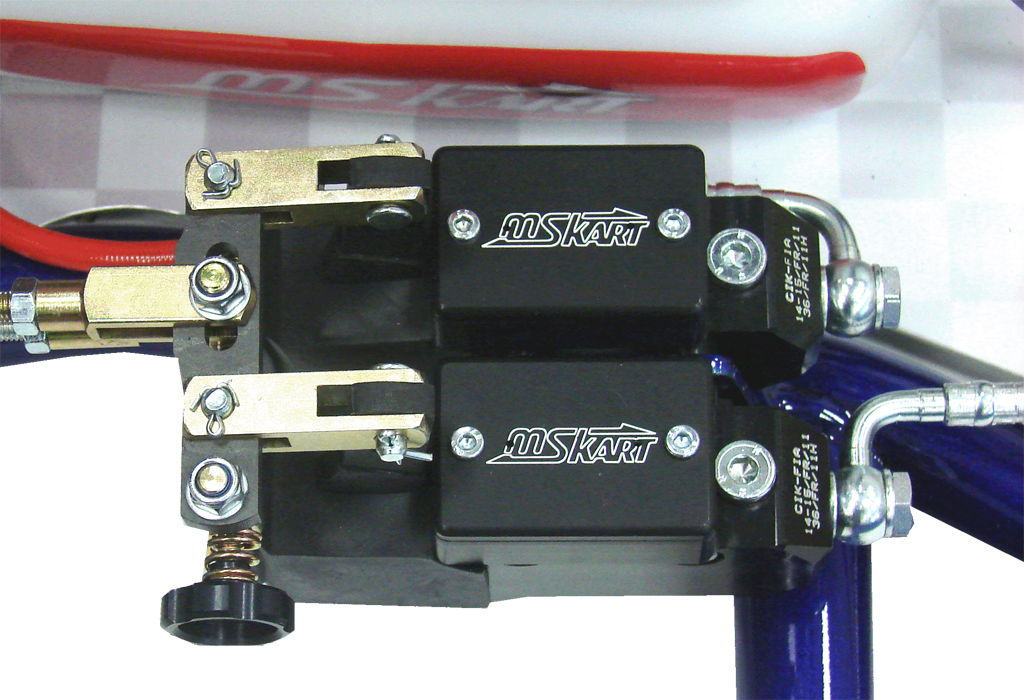

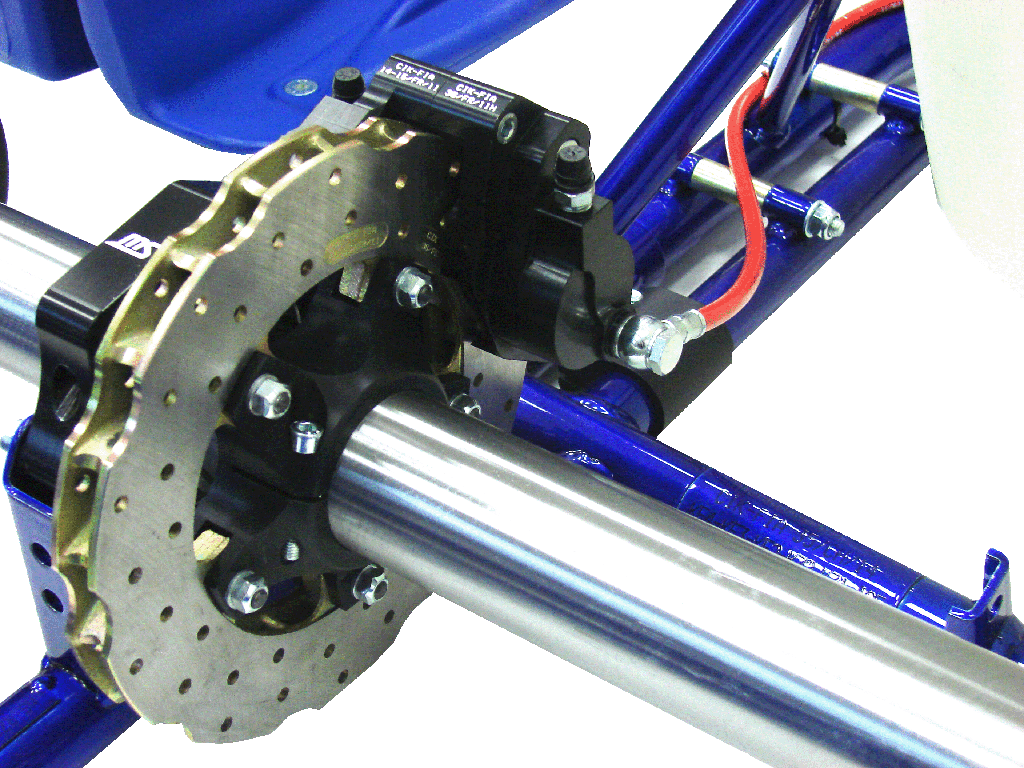

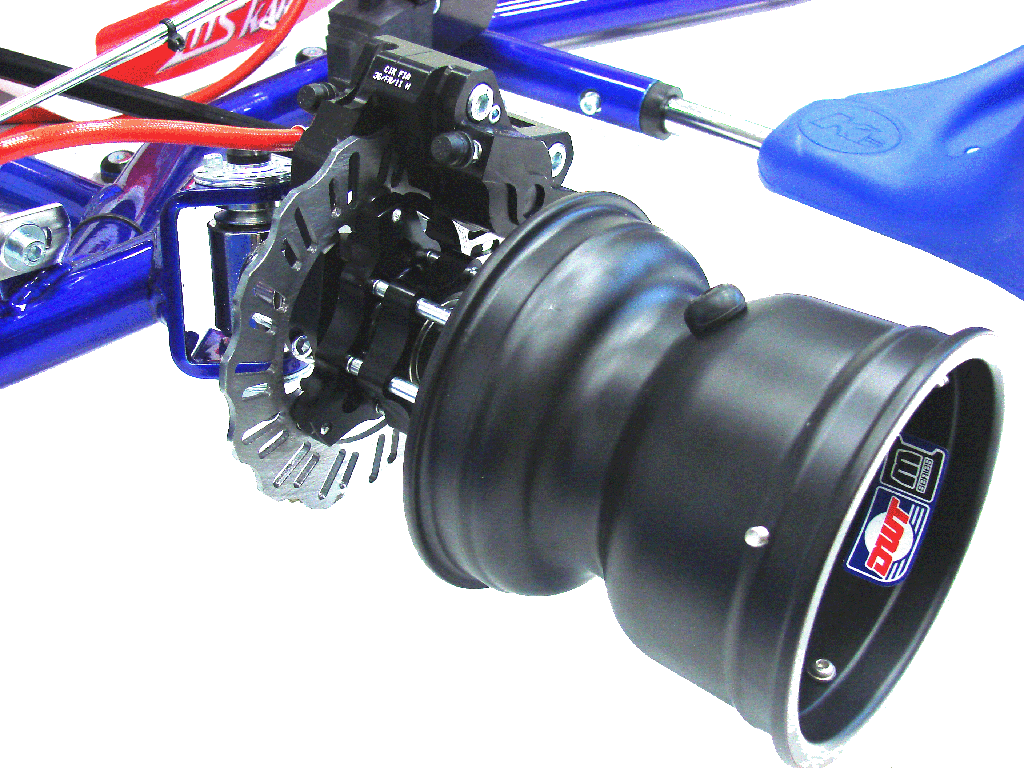

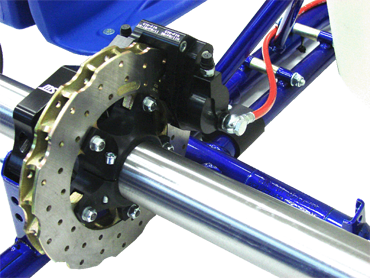

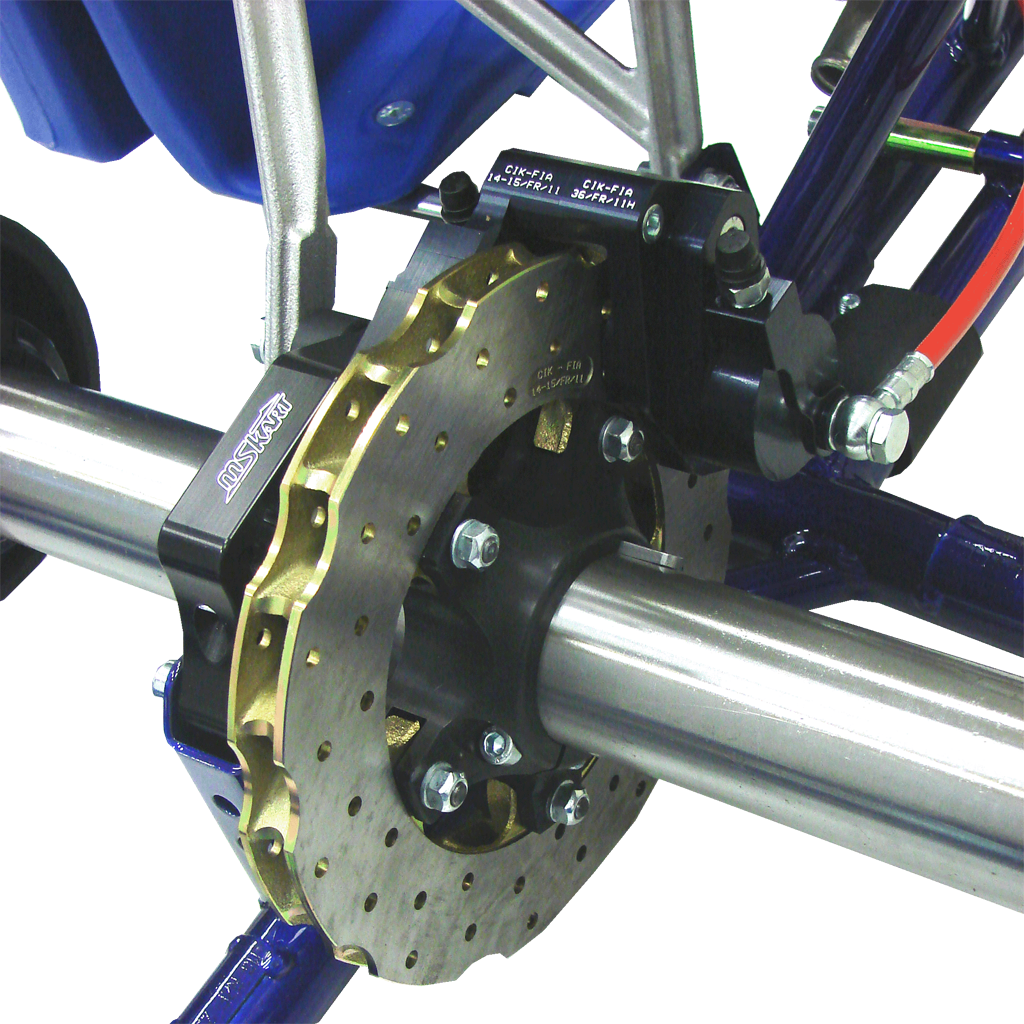

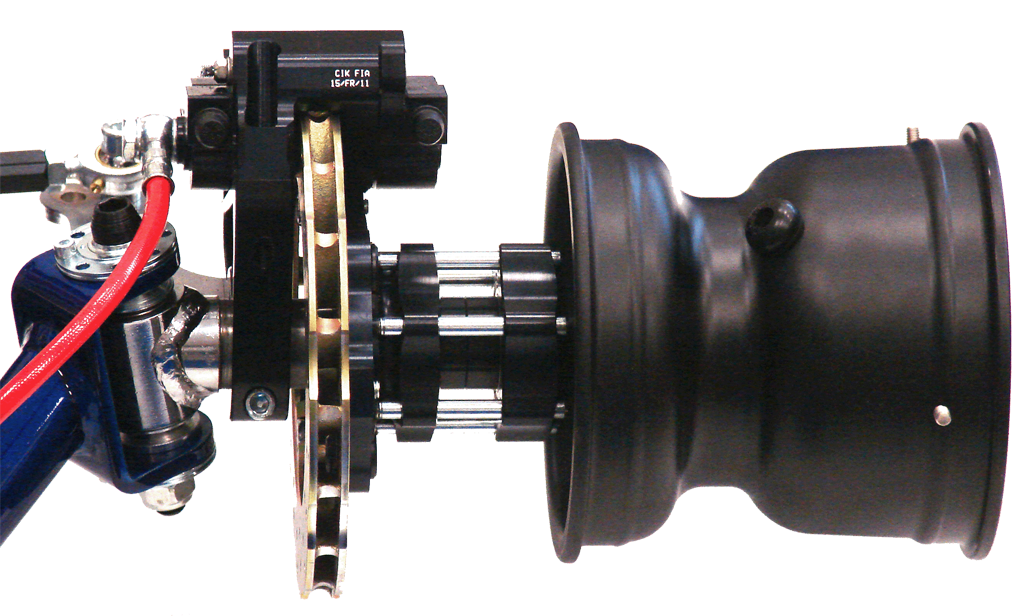

- hydraulic selfadjusting K KART brakes (with automatic adjustment of clearance between brake pads and brake disc), homologated by CIK-FIA

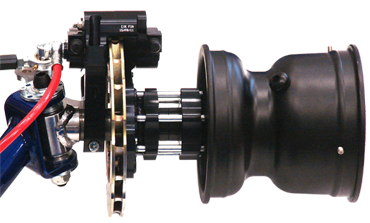

- K KART self ventilated brake discs
- brake pads available in 3 different hardness (hard S214, medium S222 and soft S273)

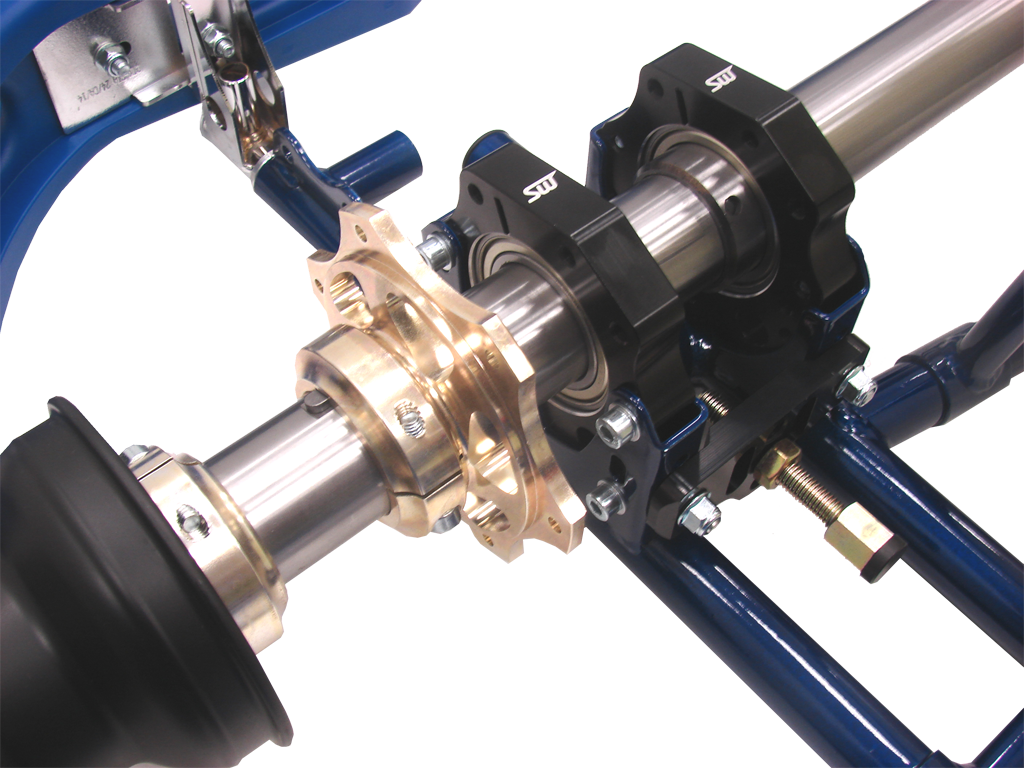

- rear axle available in 3 different hardness (soft MS38, medium MS53 and hard MS67)

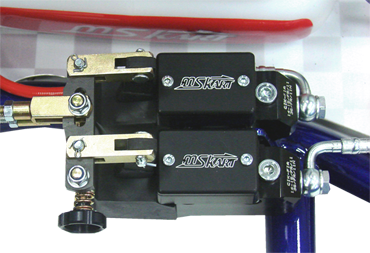

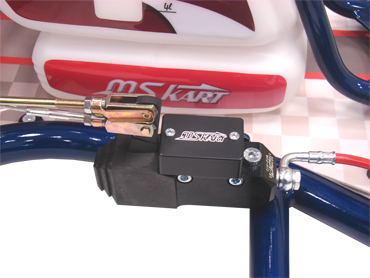

- manual brake distribution
- adjustable front and rear chassis height
- aluminium Douglas Wheel rims

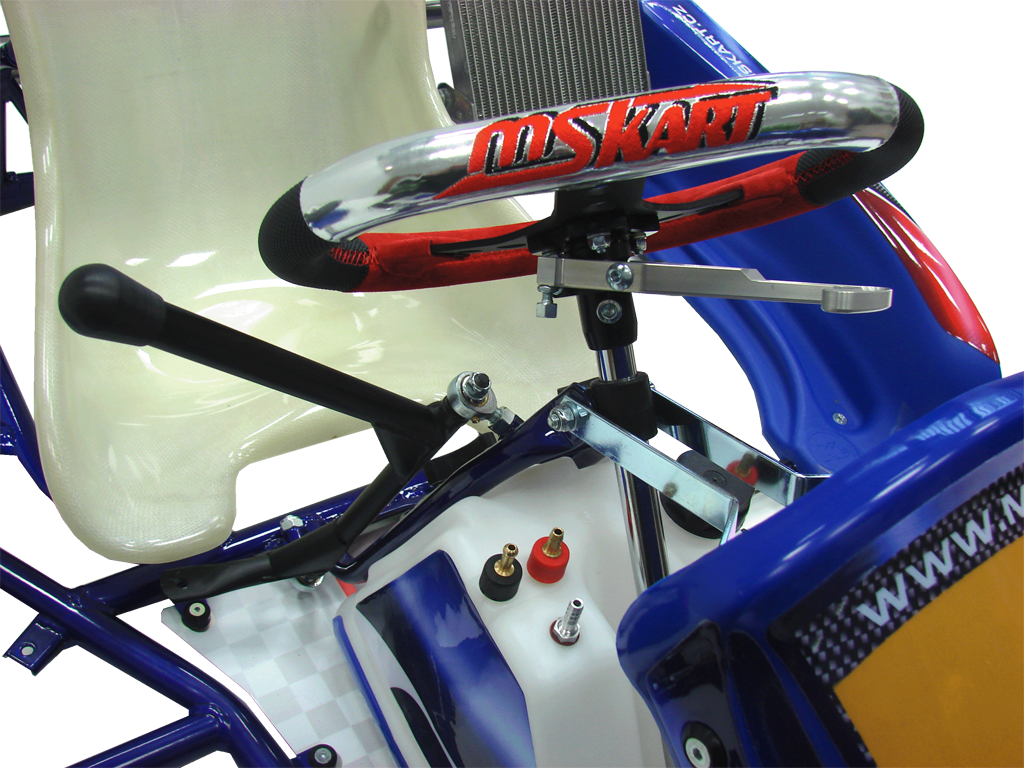

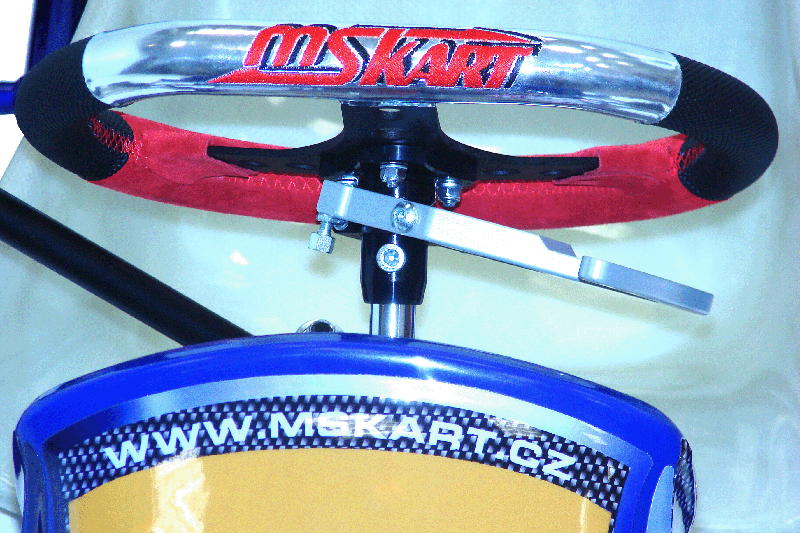

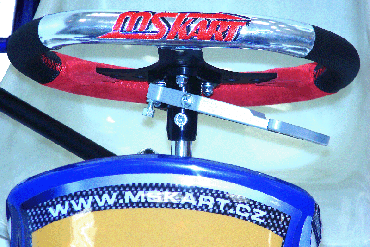

- leather steering wheel MS KART made by KG
- laminate seat
- steel rear bumper
- side torsion bar

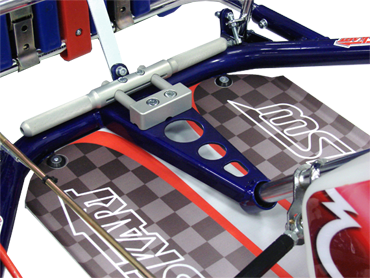

- aluminium floor tray including decall

Special accessories:

- adjustable chassis stiffness – front and rear torsion bar

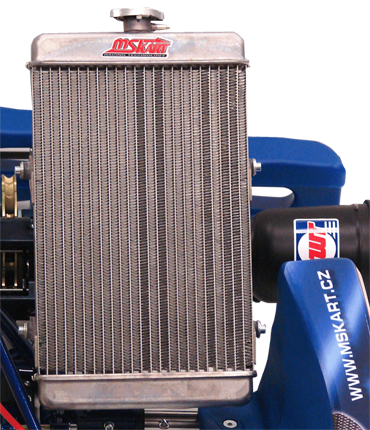

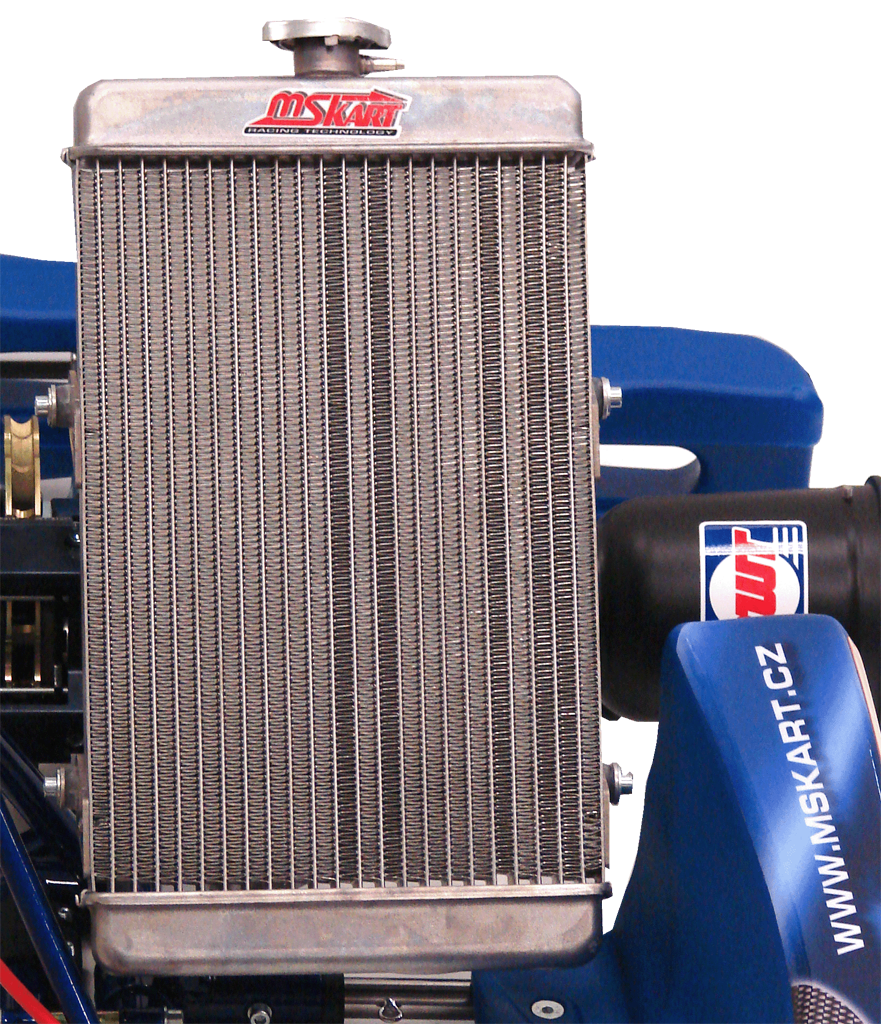

- KTM, POLAR 02 or BAR radiator (on order only, available in two sizes)
- water pump with toothed drive
- magnesium Douglas Wheel rims
- SNIPER king pin eccentrics
- carbon-kevlar or combinated laminate/carbon-kevlar seat
- partly or totally covered seat (full cover on order only)
- CKR steering wheel fit AIM or ALFANO data recording
- plastic rear spoiler made by KG
- adjustable aluminium foot stop
- MS KART decall kit
- aluminium pedals

Click here to download the homologation forms >>

Click here to download the information on chassis set up >>

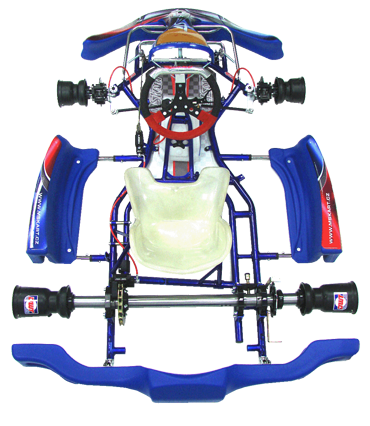

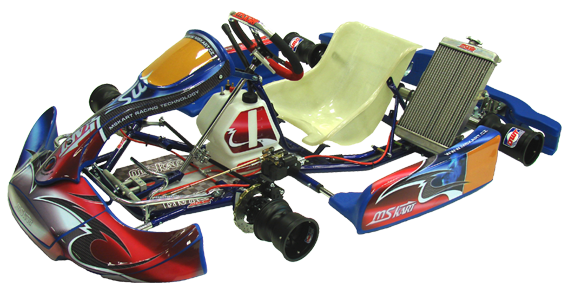

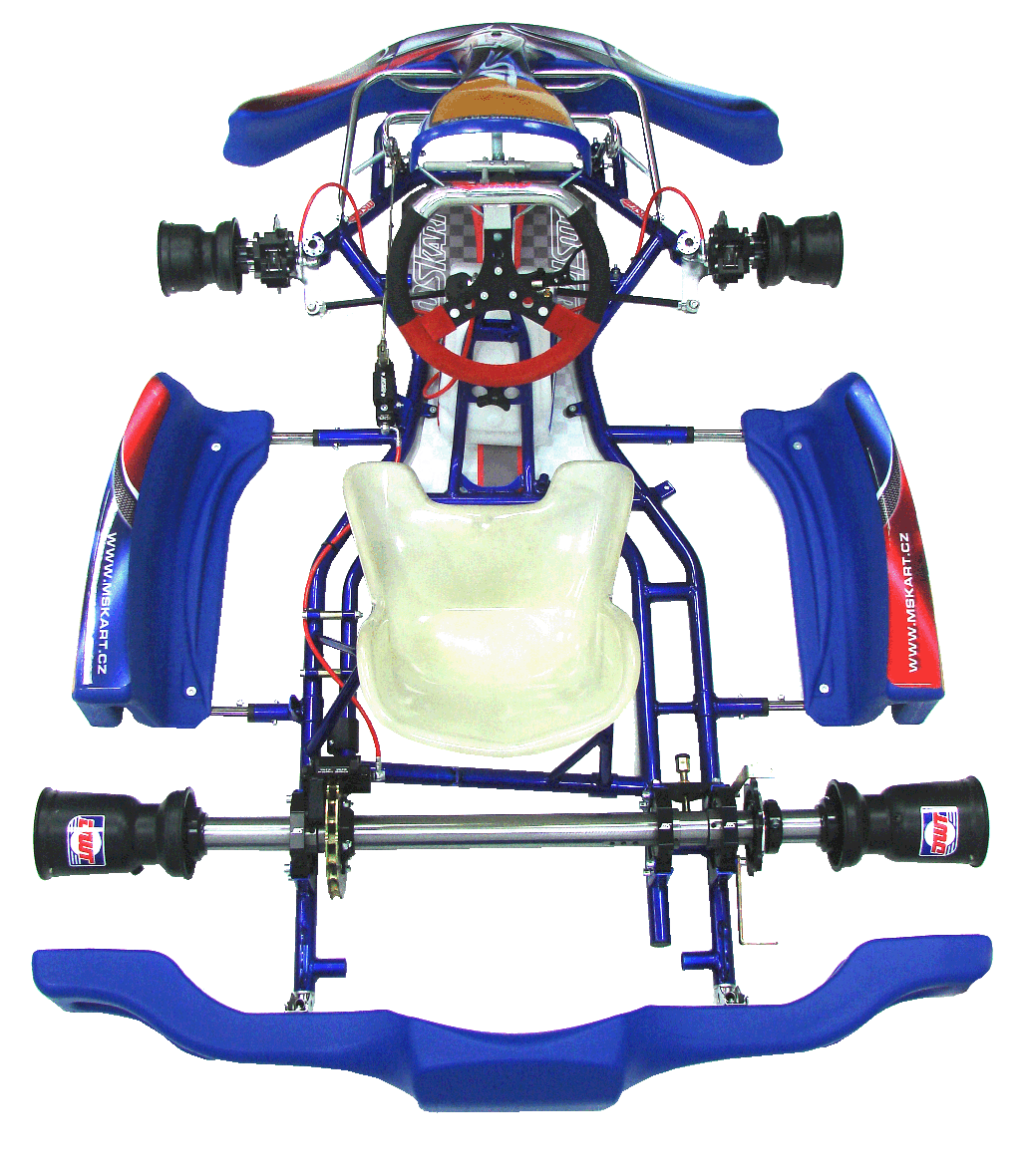

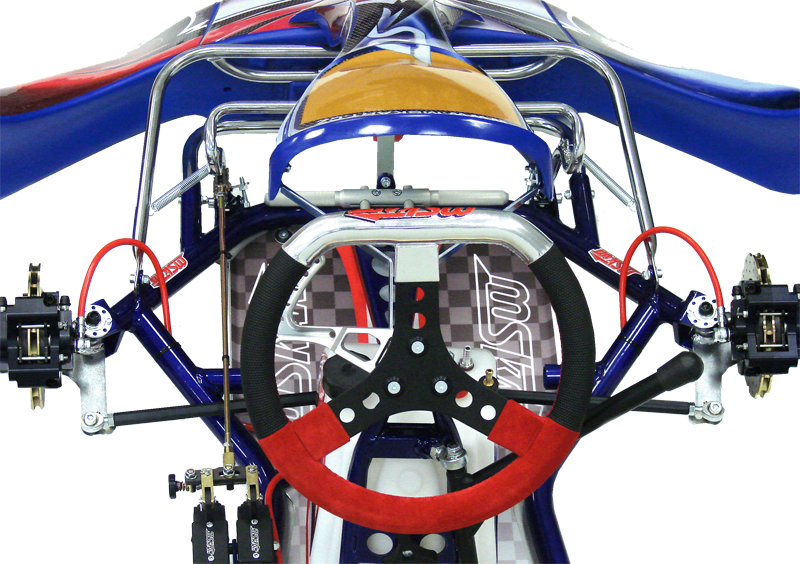

MS KART RZF 29 / KZ

Details:

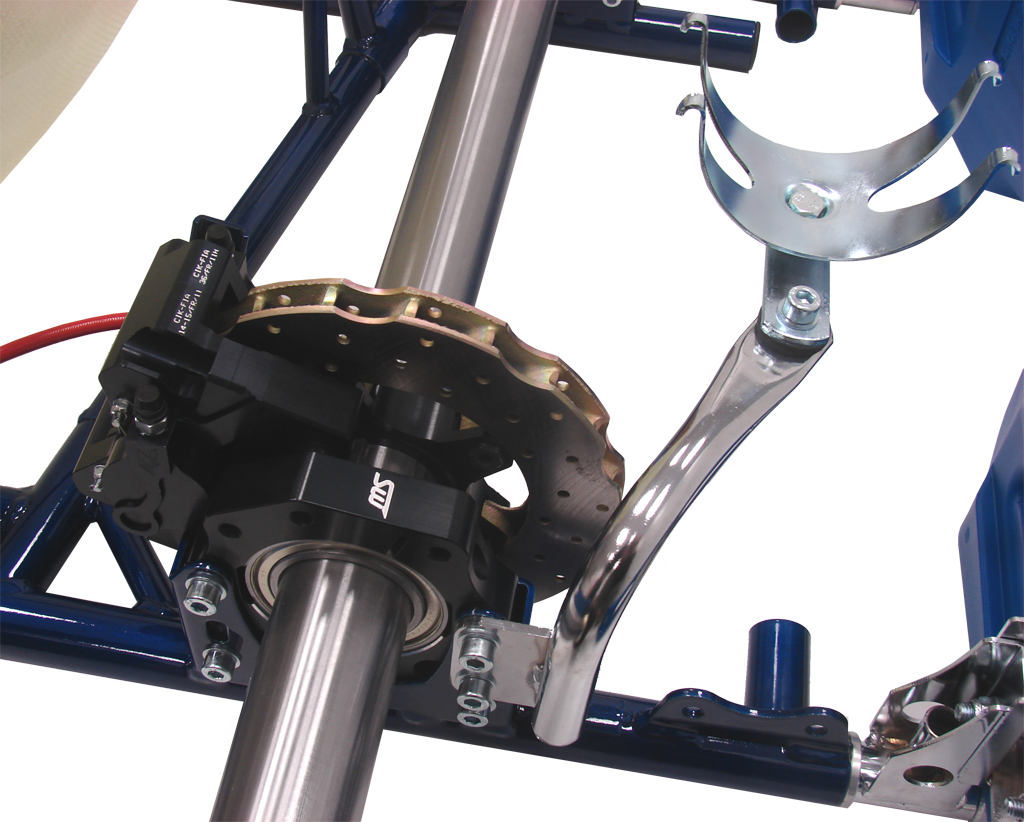

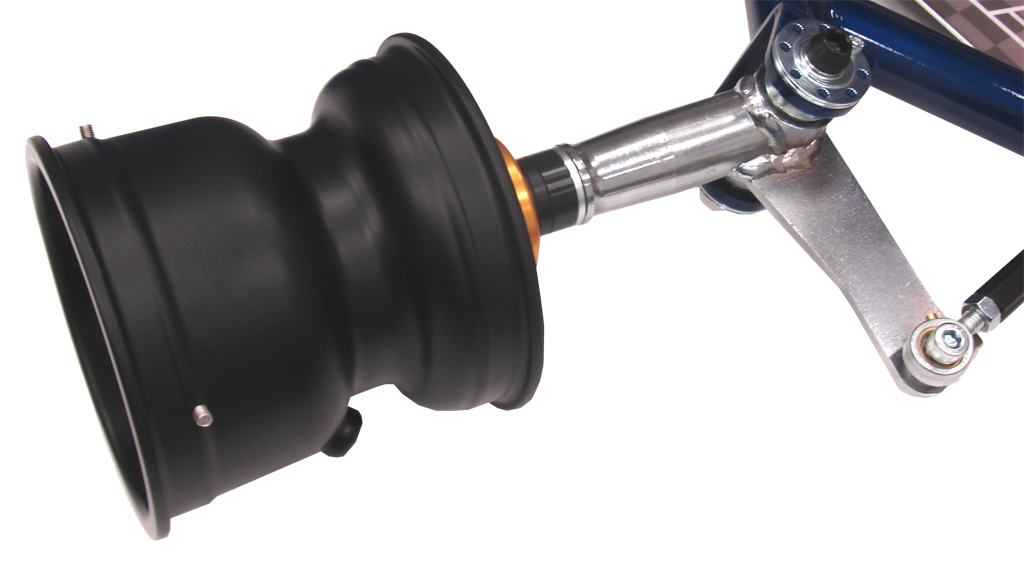

MS KART RZF 29 / KF without front brakes

Details:

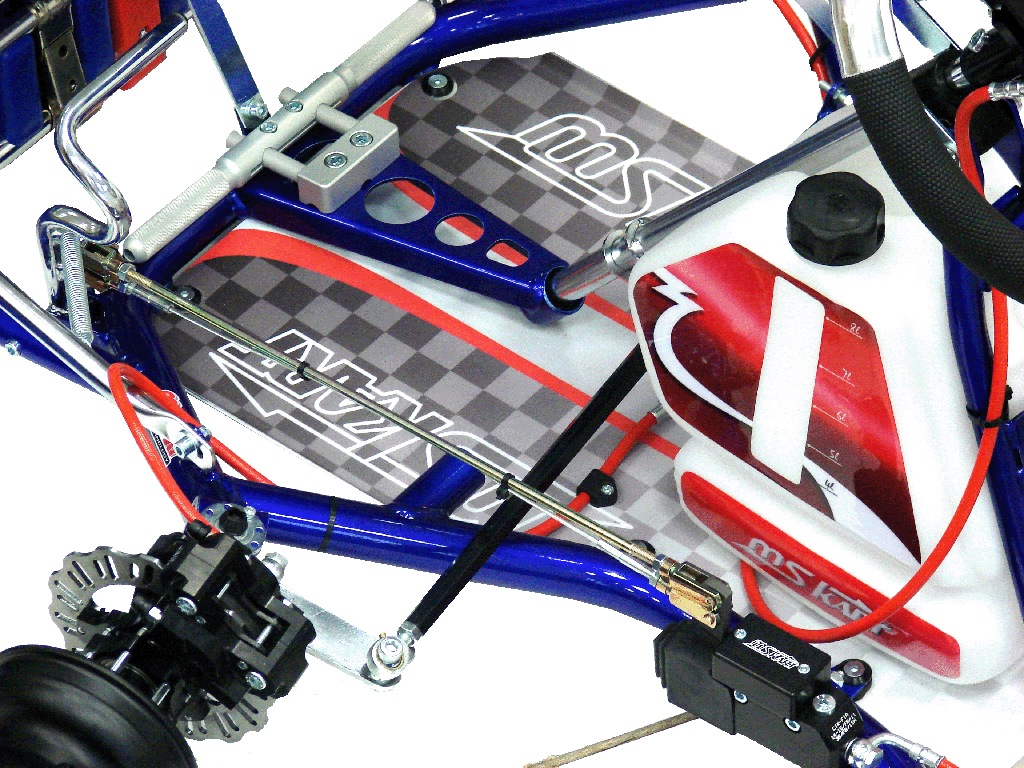

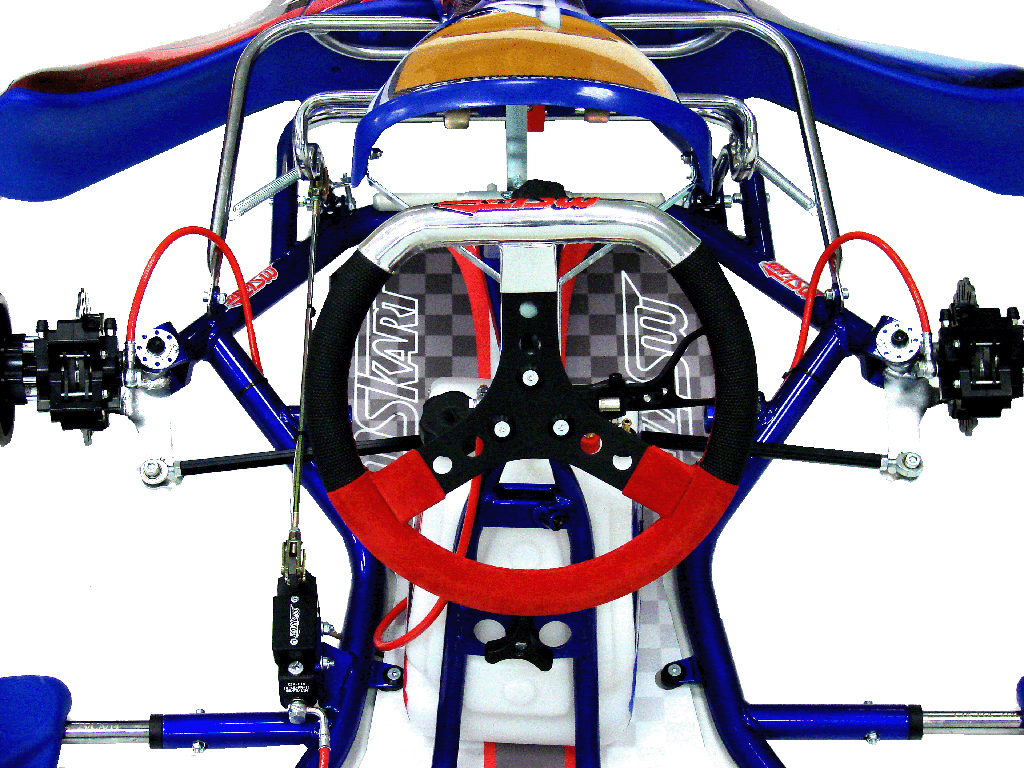

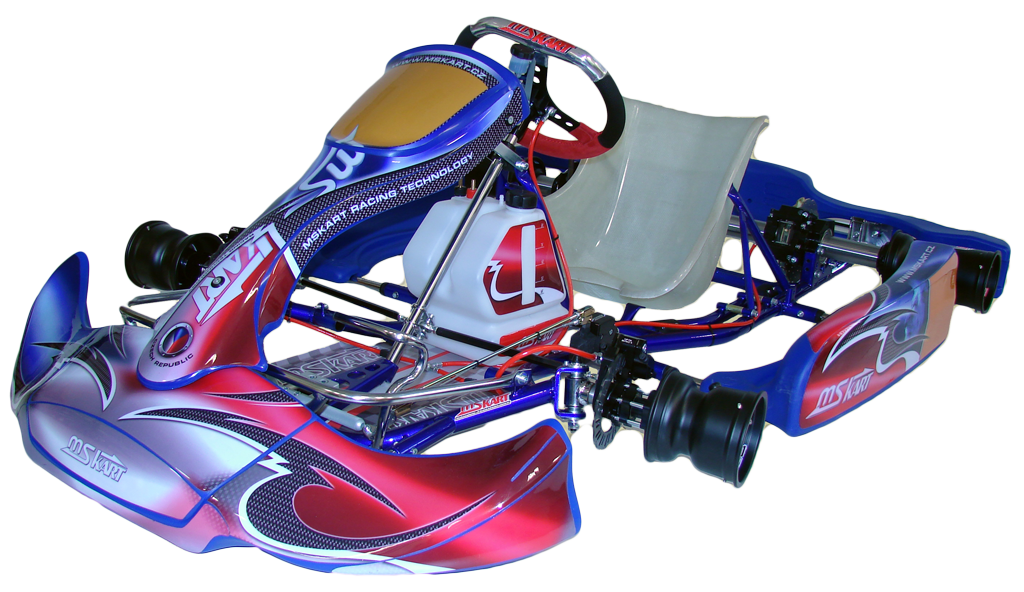

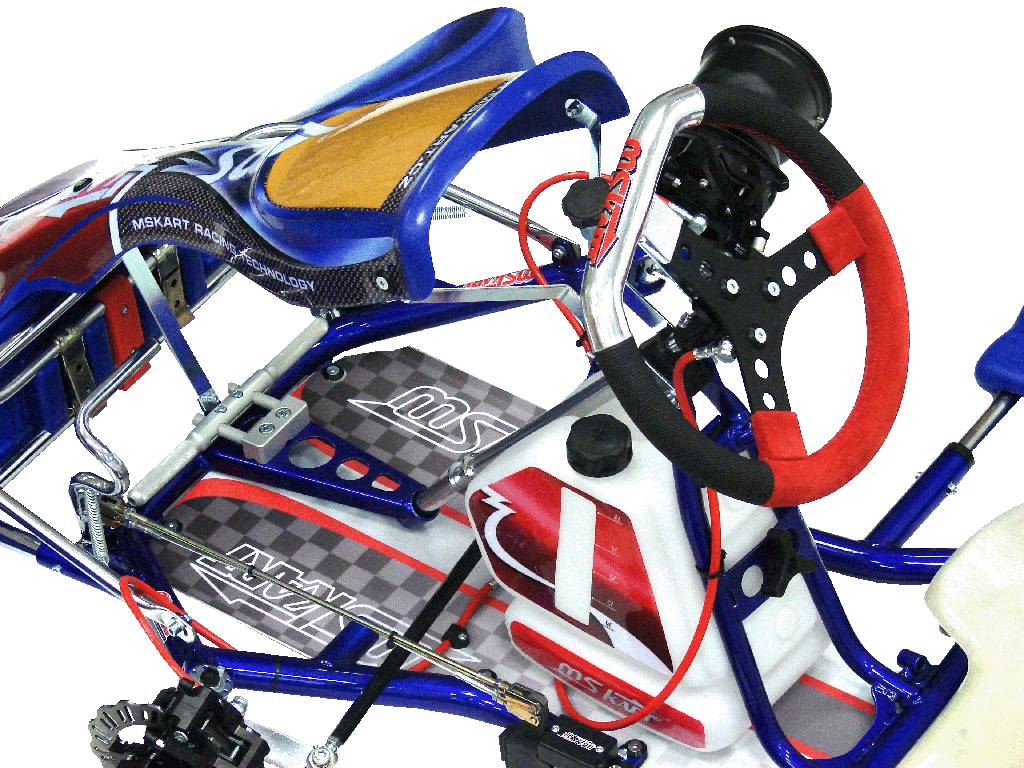

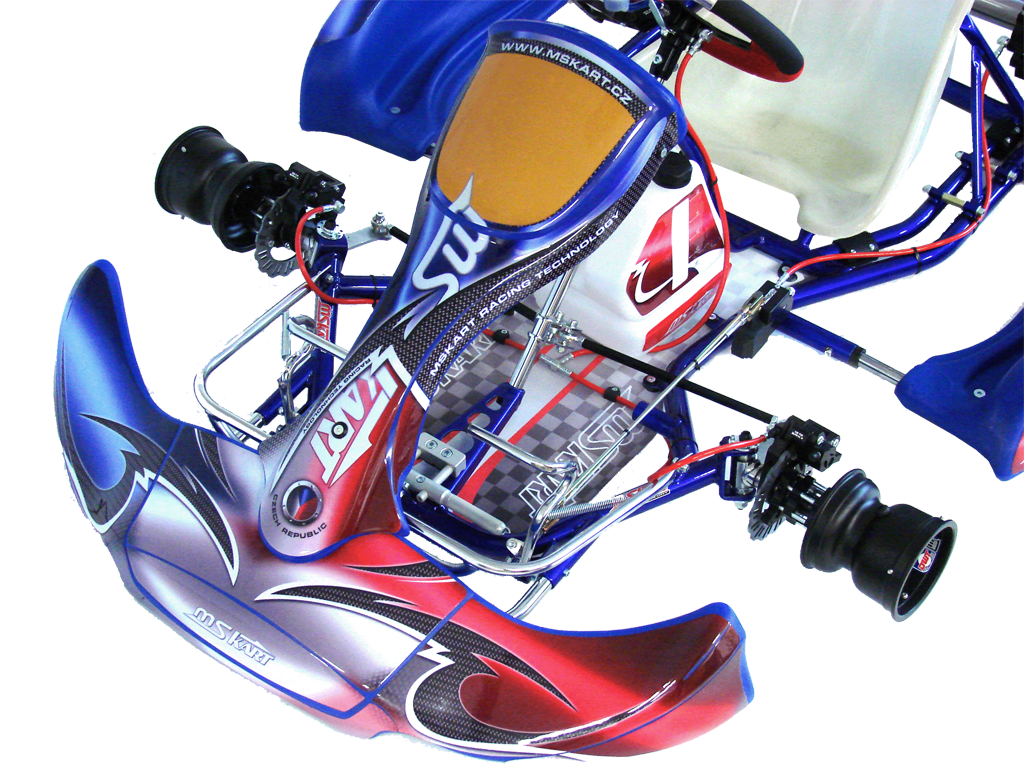

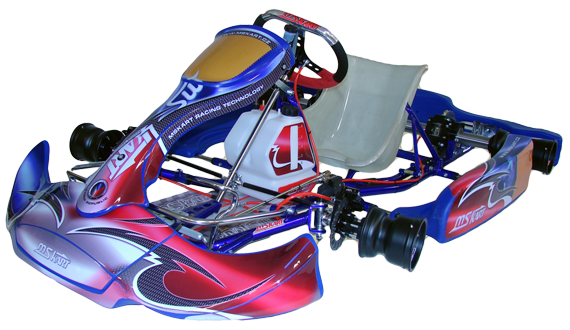

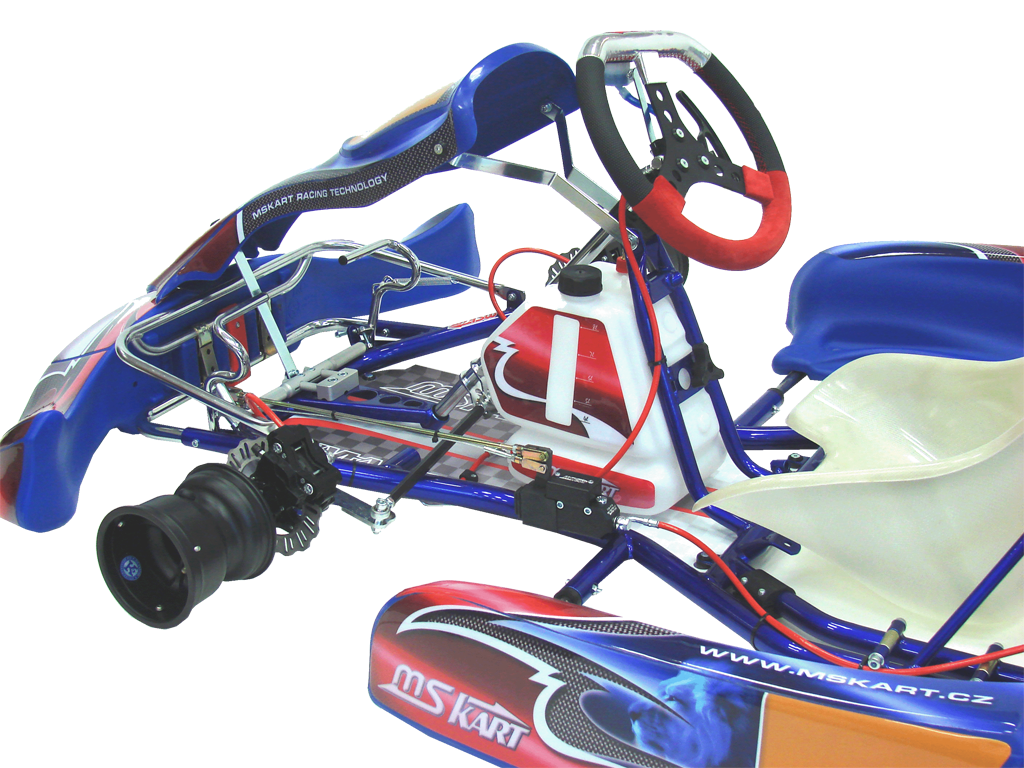

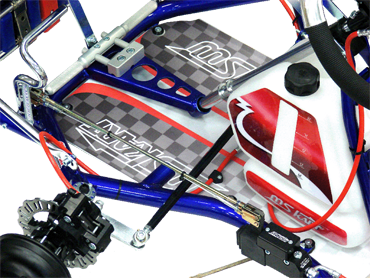

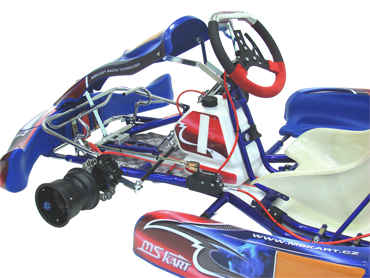

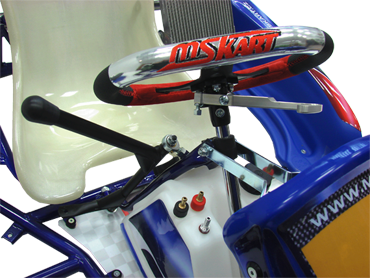

MS KART RZF 29 / KF with front brakes operated by hand

Details:

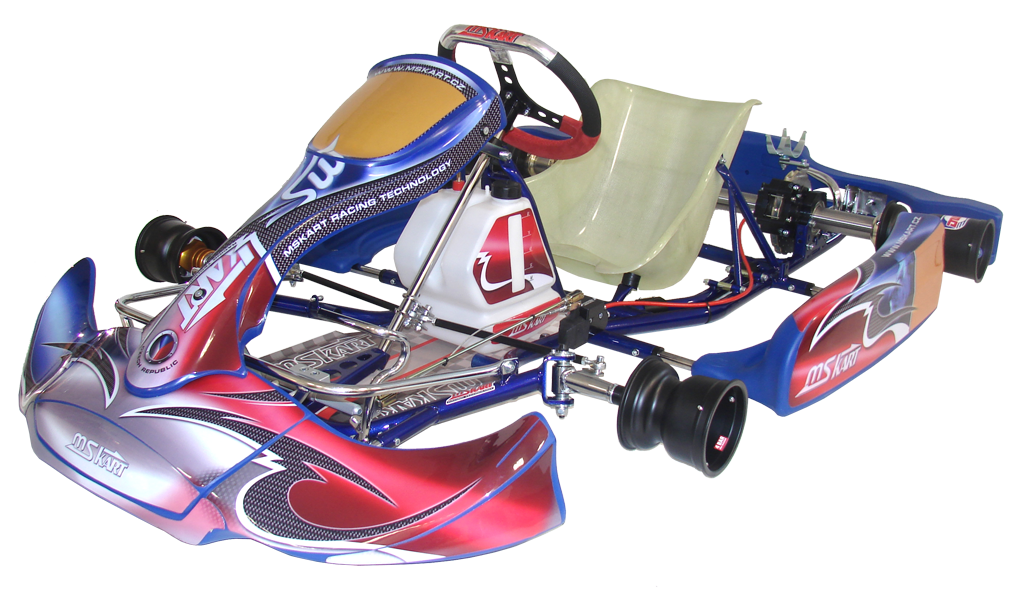

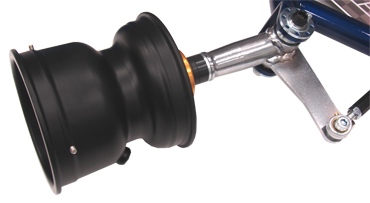

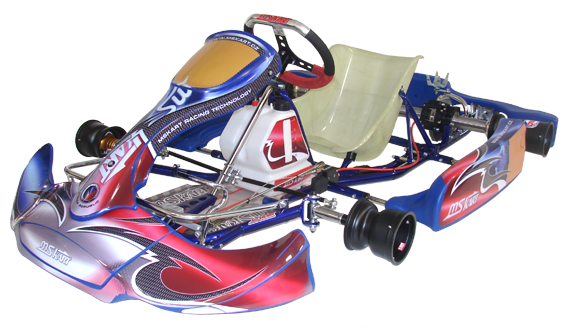

MS KART RZF 29 / KF - 4T without front brakes

Details:

MS KART RZF 29 / KZ - 4T with front brakes

Details:

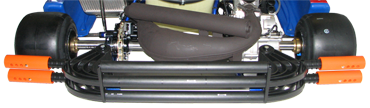

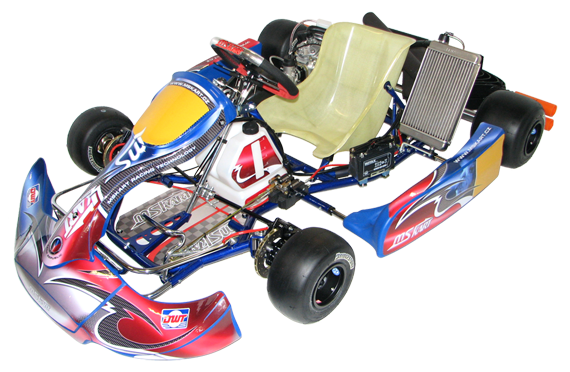

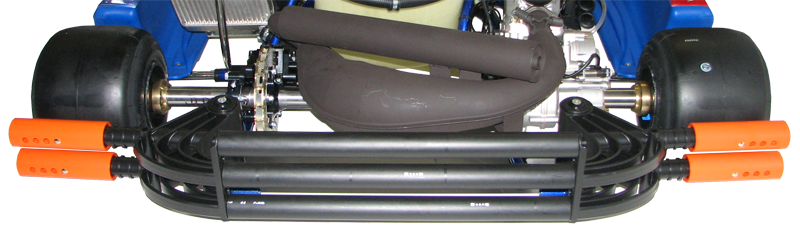

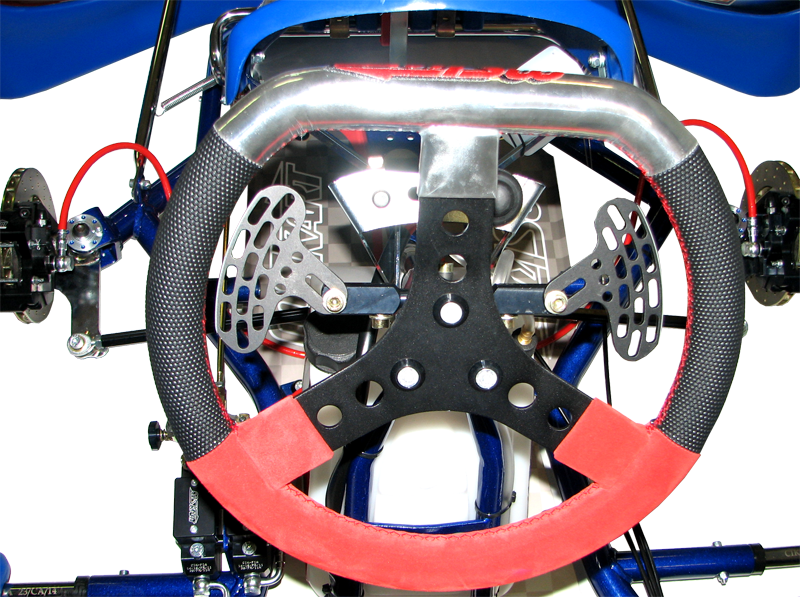

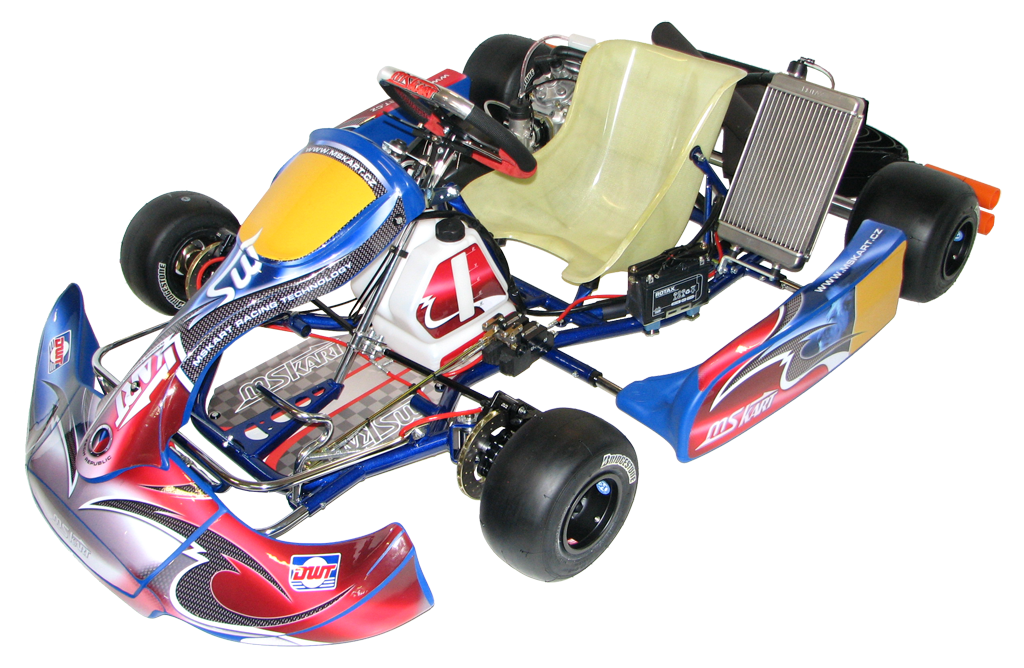

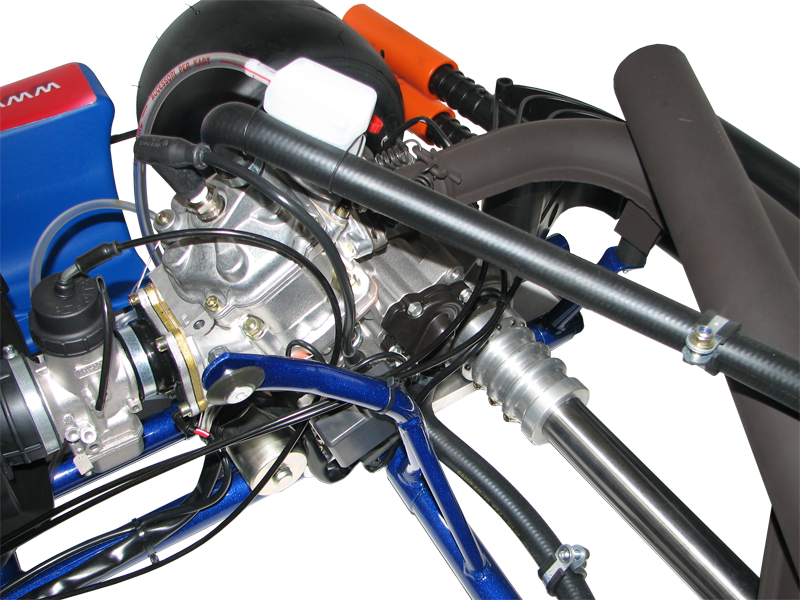

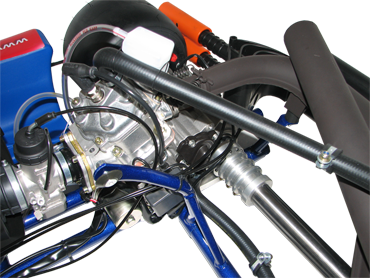

MS KART RZF 29 / DD2

Details:
